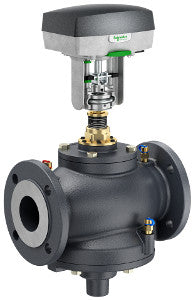

Schneider Electric VP220A-80H-176-U131 SmartX Pressure Independent Valve Assembly 3 in 2-way

Product Description

Schneider Electric VP220A-80H-176-U131 is a pressure independent valve assembly designed for effective flow control. This assembly features a three-inch body size and a two-way configuration, ideal for various HVAC applications.

• Pressure independent operation
• Flow rate of 176 gallons per minute
• Electric actuator with proportional control signal

Product Highlights

This valve assembly is beneficial for air handling units, fan coil units, and terminal units. It ensures consistent flow rates regardless of pressure fluctuations.

Product Information

Standard Information

• Body Size: 3 in
• Type: Pressure Independent

Technical Specifications

• Flow Rate: 176 gpm
• Close-Off Pressure: 232 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC, 24 VDC
• Force: 500 N
• Protection Rating: IP54
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
• Ambient Air Temperature For Operation: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Device Application: air handling unit, fan coil unit, terminal unit
