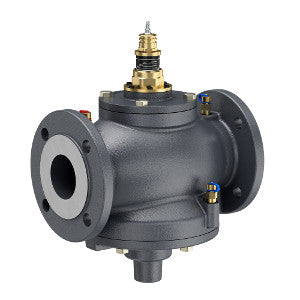

Schneider Electric VP220A-80CQS SmartX Pressure Independent Valve 3 In 2-Way Flanged

Product Description

Schneider Electric VP220A-80CQS is a pressure independent valve designed for efficient fluid control. This valve operates effectively with a flow rate range of 48 to 120 GPM and is suitable for various systems including air handling units and fan coil units.

• Body Size: 80 mm (3 in)
• Flow Rate Range: 48 to 120 GPM
• Configuration: 2-Way

Product Highlights

This valve features a flanged connection and is made from grey cast iron GG-25. It is not suitable for steam applications and operates with control media that includes glycol and water mixtures.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX PIBCV

Technical Specifications

• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 degrees Celsius
• Seat Material: Stainless steel AISI 303
• Seat Leakage: Port A: 0.05% of Qnom
• Device Application: Air handling units, fan coil units, radiation panels, terminal units
