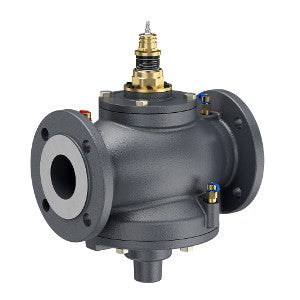

Schneider Electric VP220A-80CQH SmartX Pressure Independent Valve 3 in Replacement VP220A-80CQH

Product Description

The Schneider Electric VP220A-80CQH is a pressure independent valve designed for efficiency and reliability. This valve features a three-inch body size and operates with water and glycol mixtures. It is configured for two-way operation and has flanged connections.

• Designed for flow rates between seventy to one hundred seventy-six gallons per minute.
• Manufactured with a body made of grey cast iron for durability.
• Ideal for applications such as air handling units and fan coil units.

Product Highlights

Use this valve for reliable flow control in HVAC applications. It is suitable for mixing fluids efficiently, allowing for optimized heating and cooling.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX PIBCV

Technical Specifications

• Body Size: 3 inches
• Configuration: 2-Way
• Flow Rate Range: 70 to 176 GPM
• Control Media: Glycol 15 to 50% and Water
• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 °C
• Seat Material: Stainless steel AISI 303
• Device Application: Air handling unit, fan coil unit, radiation panel, terminal unit
