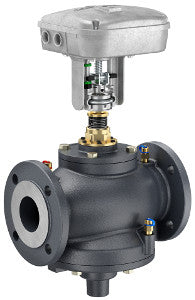

Schneider Electric VP220A-65S-080-U234 Spacelogic PIBCV Assembly 2-Way 24 V AC/DC

Product Description

Schneider Electric VP220A-65S-080-U234 is a pressure independent valve actuator assembly. It is suitable for use in HVAC systems. This assembly features a two-way design with a nominal body size of two and a half inches. The actuator provides control through proportional and floating signals, functioning effectively with flow rates of up to eighty gallons per minute.

• Body Size: 2-1/2 inches
• Flow Rate: 80 GPM
• Protection Rating: IP65

Product Highlights

This assembly is designed for air handling and fan coil units. The actuator utilizes a spring return mechanism and operates at a voltage of twenty-four volts. It is constructed to ensure reliability and ease of installation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Not specified

Technical Specifications

• Configuration: 2-Way
• Close-Off Pressure: 232 PSI
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC, 24 VDC
• Loss of Power Type: Spring Return
• Force: 500 N
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0 to 90 % RH non-condensing
