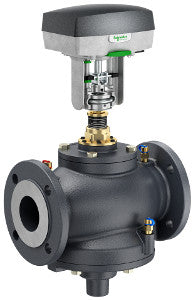

Schneider Electric VP220A-65S-075-U131 SmartX Pressure Independent Valve Assembly 2-1/2 in 2-way 75 GPM

Product Description

Schneider Electric VP220A-65S-075-U131 is a valve assembly designed for pressure-independent applications. This two-way valve has a body size of two and a half inches and supports a flow rate of up to seventy-five gallons per minute. The actuator is electric and proportional, making it suitable for various air handling systems. It’s crucial for HVAC professionals seeking reliable control in fluid systems.

• Body Size: 2-1/2 inches
• Flow Rate: 75 GPM
• Close-Off Pressure: 232 PSI

Product Highlights

This valve assembly features a non-spring return actuator, with a power input of twenty-four volts AC or DC. It includes options for manual override and is equipped with IP54 protection, suitable for many indoor applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country Origin: SI

Technical Specifications

• Type: Pressure Independent
• Connection: Flanged
• Actuator Type: MP500C
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Ambient Air Temperature For Operation: -10 to 50 °C
• Relative Humidity: 0 to 90 % RH, non-condensing
• Body Material: Grey cast iron GG-25
• Motor Type: Brushless DC motor
• Power Consumption: 15 VA AC
• Protection Rating: IP54
