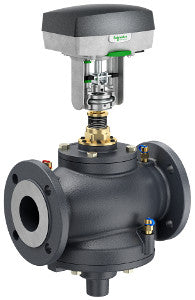

Schneider Electric VP220A-65S-070-U131 Valve Assembly 2-1/2 in 70 GPM

Product Description

The Schneider Electric VP220A-65S-070-U131 is a pressure independent valve assembly designed for HVAC applications. This two-way valve has a body size of two and a half inches and can handle a flow rate of seventy gallons per minute. It features an electric actuator for precise control and is suitable for various applications including air handling units and fan coil units.

• Pressure independent operation
• Compatible with 24 VAC or VDC
• Suitable for ambient temperatures from negative ten to fifty degrees Celsius

Product Highlights

This product provides efficient control for heating and cooling systems, ensuring precise flow regulation and energy savings.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: SI

Technical Specifications

• Body Size: 2.5 inches
• Configuration: 2-Way
• Flow Rate: 70 GPM
• Close-Off Pressure: 232 PSI
• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 4 to 20 mA DC
• Power Input Voltage: 24 VAC, 24 VDC
• Mechanical Movement: Linear
• Protection Rating: IP54
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Power Consumption: 15 VA AC
