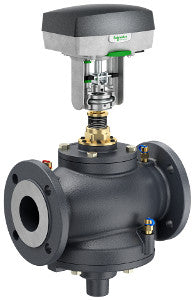

Schneider Electric VP220A-65S-065-U131 Valve Assembly 24 V AC/DC Pressure Independent

Product Description

Schneider Electric VP220A-65S-065-U131 is a pressure independent valve assembly. It features a body size of two and a half inches and a two-way configuration. This actuator operates on twenty-four volts AC or DC and has a flow rate of sixty-five gallons per minute.

• Body Size: 2-1/2 inches
• Control Type: Proportional with a control signal range of zero to ten VDC, four to twenty mAdc
• Close-Off Pressure: 232 PSI

Product Highlights

This valve assembly is suitable for use in air handling units, fan coil units, and terminal units. Its robust design ensures reliable performance across various applications, while the electric actuator allows for precise control in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Grey cast iron GG-25
• Actuator Type: Electric, linear
• Protection Rating: IP54
• Flow Rate: 65 GPM
• Power Input Voltage: 24 VAC, 24 VDC
• Electrical Insulation Class: Class III
• Ambient Air Temperature For Operation: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
