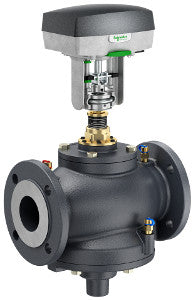

Schneider Electric VP220A-65S-060-U131 Pressure Independent Valve Assembly 2-Way 60 GPM

Product Description

The Schneider Electric VP220A-65S-060-U131 is a pressure independent valve assembly designed for efficient operation in air handling and fan coil units. This assembly features a two and a half inch body size and a flow rate of sixty gallons per minute. The actuator type is electric, which provides proportional control of fluid flow.

• Body Size: 2-1/2 inches
• Configuration: 2-Way
• Type: Pressure Independent

Product Highlights

This valve assembly is ideal for applications that require precise control of fluid dynamics without the impact of system pressure variations. Suitable uses include air handling units, fan coil units, and radiation panels.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Rate: 60 gpm
• Close-Off Pressure: 232 psi
• Power Input Voltage: 24 VAC, 24 VDC
• Control Signal: Proportional (0 to 10 VDC, 4 to 20 mAdc)
• Protection Rating: IP54
• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 °C
• Auxiliary Switch: Available as accessory
