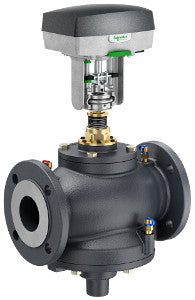

Schneider Electric VP220A-65S-056-U131 SmartX Pressure Independent Valve Assembly 2-1/2 in 56 GPM

Product Description

The Schneider Electric VP220A-65S-056-U131 is a pressure independent valve assembly designed for precise flow control in HVAC applications. This valve operates with a body size of two and a half inches and features a two-way configuration. It integrates seamlessly with air handling units and fan coil units. The valve supports a maximum flow rate of fifty-six gallons per minute and includes an electric actuator for efficient operation.

• Pressure independent design
• Flow rate of fifty-six gallons per minute
• Suitable for various HVAC applications

Product Highlights

This valve assembly offers reliable performance in demanding environments. It includes features such as a fail-in-place mechanism and is protected against dust and water ingress with an IP54 rating.

Product Information

Standard Information

• Body Material: Grey cast iron GG-25
• Actuator Type: Electric linear actuator

Technical Specifications

• Body Size: 2-1/2 inches
• Configuration: 2-Way
• Flow Rate: 56 GPM
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC, 24 VDC
• Force: 500 N
• Protection Rating: IP54
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0 to 90 % RH, non-condensing
