Schneider Electric VP220A-65CQH SmartX Pressure Independent Valve 2-1/2 in Replacement MPN

Product Description

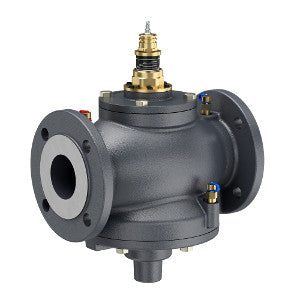

The Schneider Electric VP220A-65CQH is a pressure independent valve suited for various applications. This two-way valve has a body size of two and one-half inches and features flanged connections. It operates within a flow rate range of forty-four to one hundred ten gallons per minute, ensuring efficient regulation in air handling and similar systems.

• Pressure independent operation
• Flanged connection for easy installation
• Designed for glycol and water media

Product Highlights

Optimal for heating and cooling applications, this valve supports various media types and is suitable for fan coil units and terminal units.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VP220A-65CQH

Technical Specifications

• Body Material: Grey cast iron GG-25
• Control Media: Glycol 15 to 50% and Water
• Flow Rate Range: 44 to 110 gpm
• Operating Fluid Temperature: -10 to 120 °C
• Seat Material: Stainless steel AISI 303
• Valve Type: Pressure Independent
• Connection Type: Flanged
• Product Line: SmartX PIBCV
