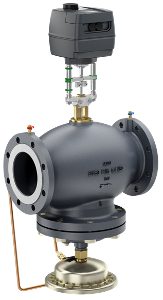

Schneider Electric VP220A-150H-830-U261 SmartX Pressure Independent Valve Assembly 6 In 830 GPM MP2000-SRU

Product Description

The Schneider Electric VP220A-150H-830-U261 is a pressure independent valve assembly designed for precise control in heating and cooling systems. This valve features a body size of six inches and supports a flow rate of up to 830 gallons per minute.

• Body Size: 6 In
• Configuration: 2-Way
• Actuator: MP2000-SRU Electric

Product Highlights

The valve assembly is built for automatic temperature control, ideal for commercial HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Flow Rate Range: 332 to 830 GPM
• Power Input Voltage: 24 VAC, 24 VDC
• Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc
• Loss of Power Position: Normally Open
• Protection Rating: IP54
• Operating Fluid Temperature: -10 to 120 °C
• Valve Body Material: Grey Cast Iron GG-25
• Seat Material: Stainless Steel AISI 420
