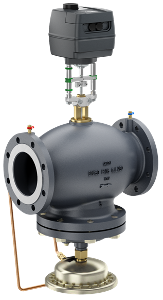

Schneider Electric VP220A-125S-395-U261 SmartX Valve Assembly 5 In 2-Way

Product Description

Schneider Electric introduces the VP220A-125S-395-U261 SmartX Valve Assembly. This valve assembly operates as a pressure independent system with a body size of five inches and a two-way configuration. It is suitable for a flow rate range from one hundred fifty-eight to three hundred ninety-five gallons per minute.

• Pressure independent valve assembly
• Includes an MP2000-SRU proportional spring return actuator
• Designed for North American use

Product Highlights

This valve assembly is engineered for efficiency in water systems. It connects through flanged connections and is made of brass. It is important to note that this assembly is not for use with steam.

Product Information

Standard Information

• Country of Origin: Slovenia
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 5 inches
• Flow Rate: 158 to 395 gallons per minute
• Actuator Type: Electric
• Power Input Voltage: 24 VAC, 24 VDC
• IP Protection Rating: IP54
• Operating Temperature: -10 to 120 °C
• Control Signal Range: 0 to 10 VDC
• Material: Brass
• Weight: 10 g
• Seat Leakage: Port A: 0.01% of Qnom
