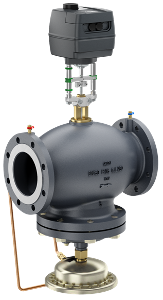

Schneider Electric VP220A-125S-395-U161 SmartX Pressure Independent Valve Assembly 5 in 2-Way MP2000-NSR

Product Description

The Schneider Electric VP220A-125S-395-U161 is a pressure independent valve assembly designed for fluid control. The valve features a five-inch size and operates as a two-way valve with a flow rate of up to 395 gallons per minute. It is suitable for use in various applications including HVAC, plumbing, and industrial processes.

• Pressure Independent Design
• Flow Rate: Up to 395 GPM
• Electric Actuator with Proportional Control

Product Highlights

This assembly provides consistent performance in pressure control applications while being user-friendly.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: SI

Technical Specifications

• Body Size: 5 inches
• Configuration: 2-Way
• Flow Rate Range: 158 to 395 GPM
• Actuator Type: Electric (MP2000)
• Control Signal: 0 to 10 VDC, 0 to 20 mAdc
• Power Input Voltage: 24 VAC
• Protection Rating: IP54
• Seat Material: Stainless Steel AISI 420
• Operating Fluid Temperature: -10 to 120 °C
• Ambient Air Temperature for Operation: 0 to 55 °C
• Relative Humidity: 5 to 95 % non-condensing
• Close-Off Pressure: 232 psi
