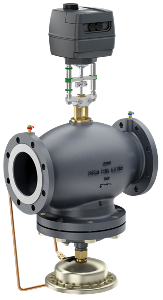

Schneider Electric VP220A-125H-485-U361 SmartX Pressure Independent Valve Assembly 5 in 2-way

Product Description

The Schneider Electric VP220A-125H-485-U361 is a pressure independent valve assembly designed for efficient fluid control. This valve assembly features a five-inch body and operates as a two-way valve. It supports a flow rate from one hundred ninety-four to four hundred eighty-five gallons per minute, making it suitable for various applications. This product includes the MP2000-SRD actuator, which is electric and designed with a proportional control signal.

• Pressure independent functionality
• Flanged connection for easy installation
• Effective for flow management in HVAC systems

Product Highlights

This valve assembly is integral for precise fluid regulation in North American systems. It achieves optimal performance while maintaining protection against environmental factors.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: SI

Technical Specifications

• MPN: VP220A-125H-485-U361
• Body Size: 5 inches
• Flow Rate: 194 to 485 GPM
• Actuator Type: Electric
• Power Input Voltage: 24 VAC, 24 VDC
• IP Protection Rating: IP54
• Loss of Power Position: Normally closed
• Material Trim: Brass
• Seat Material: Stainless steel AISI 420
• Operating Fluid Temperature: -10 to 120 °C
