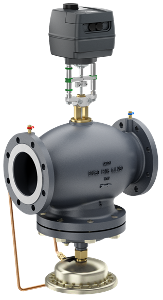

Schneider Electric VP220A-125H-485-U161 SmartX Pressure Independent Valve Assembly 5 in 2-way

Product Description

The Schneider Electric VP220A-125H-485-U161 is a SmartX pressure independent valve assembly. It features a five-inch body size and operates as a two-way valve. This valve is designed for applications requiring flow rates between one hundred ninety-four and four hundred eighty-five gallons per minute. The electromechanical actuator offers proportional control, allowing precise adjustment of flow based on demand.

• Body Size: Five inches
• Type: Pressure independent
• Flow Rate Range: 194 to 485 GPM

Product Highlights

Ideal for pressure independent control in HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Valve Configuration: 2-way
• Actuator Type: Electric
• Control Signal: Proportional
• Power Input Voltage: 24 VAC
• IP Protection Rating: IP54
• Operating Fluid Temperature: -10 to 120 °C
• Close-Off Pressure: 232 psi
• Material Trim: Brass
