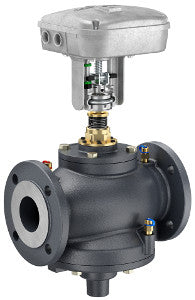

Schneider Electric VP220A-100S-165-U234 Spacelogic PIBCV Assembly 4 in 2-Way 165 GPM

Product Description

Schneider Electric VP220A-100S-165-U234 is a pressure independent valve actuator assembly designed for HVAC applications. This assembly features a four-inch body size and operates in a two-way configuration.

• Flow Rate: 165 GPM
• Control Signal: Proportional, Floating
• Power Input Voltage: 24 VAC, 24 VDC

Product Highlights

This assembly is designed for controlling flow in air handling and fan coil units. It includes an MP500C-SRU-W actuator for precise operation. The actuator is efficient with a spring return mechanism, ensuring reliability during power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Body Size: 4 inches
• Configuration: 2-Way
• Flow Rate: 165 GPM
• Close-Off Pressure: 232 PSI
• Actuator Type: Electric
• Loss of Power Position: Normally closed
• Protection Rating: IP65
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0-90% RH, non-condensing
• Force: 500 N (113 lbf)
• Power Consumption: 30 VA AC
• Communication Port Protocol: None
