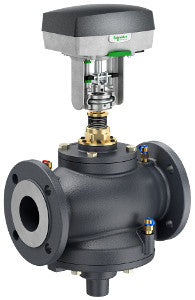

Schneider Electric VP220A-100S-165-U131 Pressure Independent Valve Assembly 4 in 2-Way 165 GPM

Product Description

Schneider Electric VP220A-100S-165-U131 is a pressure independent valve assembly designed for effective control in HVAC systems. This valve assembly features a body size of four inches and operates as a two-way valve. It is engineered for a flow rate of one hundred sixty-five gallons per minute and is equipped with the MP500C proportional non-spring return actuator for reliable electric operation.

• Pressure independent design
• Flow rate of 165 GPM
• Electric actuator with proportional control

Product Highlights

This valve assembly is ideal for applications such as air handling units, fan coil units, and terminal units. Its non-spring return actuator ensures reliable operation even during power loss. Also, it is designed with an IP54 protection rating, making it suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Slovenia

Technical Specifications

• Body Size: 4 inches
• Flow Rate: 165 GPM
• Close-Off Pressure: 232 PSI
• Power Input Voltage: 24 VAC, 24 VDC
• Force: 500 N
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Auxiliary Switch: Available as accessory
• Mechanical Movement: Linear
• Protection Rating: IP54
• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 °C
• Relative Humidity: 0-90% RH, non-condensing
• Material: EPDM O-rings, reinforced Teflon seal
