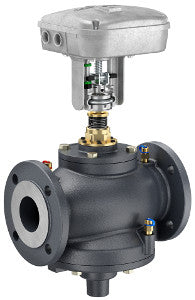

Schneider Electric VP220A-100H-260-U234 Spacelogic PIBCV Assembly 4 in 2-Way 260 GPM

Product Description

Schneider Electric VP220A-100H-260-U234 is a valve actuator assembly designed for pressure independent control valves. This assembly features a four-inch body size and operates with a two-way configuration. The unit allows for a flow rate of up to 260 gallons per minute, making it suitable for various HVAC applications.

• Body Size: 4 inches
• Configuration: 2-Way
• Type: Pressure Independent

Product Highlights

This actuator features a proportional control signal and operates on a power input voltage of twenty-four volts AC or DC. The IP65 protection rating guarantees durability in demanding environments.

Product Information

Standard Information

• Actuator Type: Electric
• Close-Off Pressure: 232 PSI

Technical Specifications

• Flow Rate: 260 GPM
• Loss of Power Type: Spring Return
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Power Consumption: 30 VA AC
• Ambient Air Temperature for Operation: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Valve Body Material: Grey cast iron GG-25
• Seat Leakage: Port A: 0.05% of Qnom
