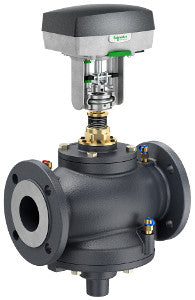

Schneider Electric VP220A-100H-260-U131 SmartX Pressure Independent Valve Assembly 4 in 2-way 260 GPM

Product Description

Schneider Electric VP220A-100H-260-U131 is a pressure independent valve assembly designed for effective control in HVAC applications. This valve features a four-inch body and a two-way configuration, making it suitable for various usage scenarios. The assembly includes an MP500C proportional actuator that operates efficiently in heating and cooling systems.

• Body Size: Four inches
• Flow Rate: Two hundred sixty GPM
• Control Signal: Floating, proportional

Product Highlights

The VP220A-100H-260-U131 provides precise control over fluid flow and is ideal for air handling units, fan coil units, and terminal units. It supports automatic reset control with a protection rating of IP54.

Product Information

Standard Information

• Type: Valve-actuator assembly
• Country of Origin: N/A

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: Two hundred thirty-two PSI
• Power Input Voltage: Twenty-four VAC, twenty-four VDC
• Body Material: Grey cast iron GG-25
• Temperature Operating Fluid: Negative ten to one hundred twenty degrees Celsius
• Control Signal Range: Zero to ten VDC, two to ten VDC, four to twenty mAdc
• Auxiliary Switch: Available as accessory
• Loss of Power Position: Fail in place
