Schneider Electric VP220A-100CQS SmartX Pressure Independent Valve 4 in Replacement MPN

Product Description

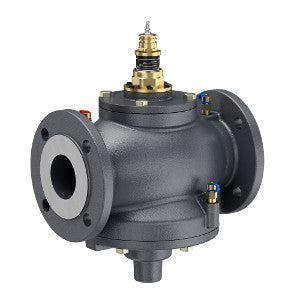

The Schneider Electric VP220A-100CQS is a pressure independent valve designed for efficiency. This valve features a body size of four inches and utilizes flanged connections. It caters to flow rates ranging from sixty-six to one hundred sixty-five gallons per minute. The valve operates effectively with glycol solutions and water.

• Body Size: 4 inches
• Configuration: 2-Way
• Flow Rate Range: 66 to 165 GPM

Product Highlights

Ideal for air handling units, fan coil units, and terminal units.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: SI

Technical Specifications

• Body Material: Grey cast iron GG-25
• Operating Fluid Temperature: -10 to 120 °C
• Seat Material: Stainless steel AISI 303
• Control Media: Glycol 15 to 50% and Water
• Product Series: VP220A
• Product Line: SmartX PIBCV
• Seat Leakage: Port A: 0.05% of Qnom
• Device Application: Air handling unit, Fan coil unit, Radiation panel, Terminal unit
