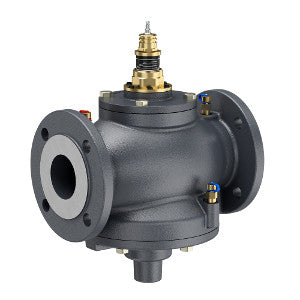

Schneider Electric VP220A-100CQH SmartX Pressure Independent Valve 4 Inch

Product Description

The Schneider Electric VP220A-100CQH is a pressure independent valve designed for precise flow control. This valve is suitable for various applications including air handling and fan coil units. Its two-way configuration and flanged connections allow for easy installation and robust performance.

• Body size of 100 mm (four inches)
• Flow rate ranges from one hundred four to two hundred sixty gallons per minute
• Compatible with water and glycol mixtures

Product Highlights

This valve features a simple design that enhances system efficiency while minimizing leakage at just zero point zero five percent of nominal flow. It is essential for HVAC systems requiring reliable and consistent performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX PIBCV

Technical Specifications

• Valve Type: Pressure Independent
• Flow Rate Range: one hundred four to two hundred sixty gallons per minute (GPM)
• Body Material: grey cast iron GG-25
• Control Media: Glycol fifteen to fifty percent and water
• Operating Fluid Temperature: minus ten to one hundred twenty degrees Celsius
• Seat Leakage: Port A: zero point zero five percent of nominal flow
• Seat Material: Port A: stainless steel AISI 303
