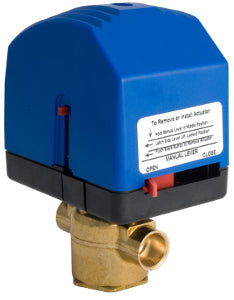

Schneider Electric VM2517P23A000 Valve Assembly 1-1/4 in 2-Way Zone

Product Description

Schneider Electric VM2517P23A000 is a valve assembly designed for zone control in HVAC systems. This product features a one and one-fourth inch body size and operates as a two-way zone valve. It utilizes sweat connections and is made from brass material. The flow coefficient is eight cv, suitable for applications with a control medium of glycol and water. The valve is powered by a twenty-four VAC electric actuator that supports a proportional control signal.

• Body Size: 1-1/4 in
• Configuration: 2-Way
• Close-Off Pressure: 35 PSI

Product Highlights

This valve assembly is ideal for HVAC technicians needing reliable zone control in HVAC systems. The automatic reset control type ensures efficient operation in residential and commercial applications.

Product Information

Standard Information

• Product Line: Schneider Electric
• Product Series: VM2

Technical Specifications

• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Ambient Air Temperature For Operation: 1.6-51.6 °C
• Relative Humidity: 5-95 % non-condensing
• Operating Fluid Temperature: 0-93 °C
• Valve Rotation: Normally open
