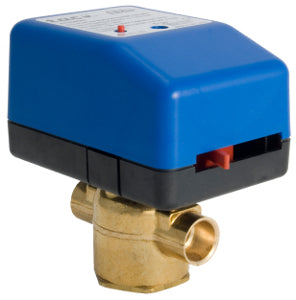

Schneider Electric VM2437T33A000 Erie PopTop Zone Valve Assembly 24 V AC

Product Description

The Schneider Electric VM2437T33A000 is a zone valve assembly designed for automated control of heating and cooling systems. It features a two-way configuration and operates on 24 Volt AC power. This valve is compatible with various media, including glycol mixtures and water, making it suitable for diverse applications in HVAC systems.

• Body Size: one inch
• Material: Brass
• Flow Coefficient: 8 cv

Product Highlights

This valve assembly provides efficient control for residential and commercial HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop
• Type: Zone Valve

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 35 PSI
• Control Signal: Floating
• Power Input Voltage: 24 VAC
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 degrees Celsius
• Ambient Air Temperature For Operation: 1.6-51.6 degrees Celsius
• Humidity Range: 5-95% non-condensing
