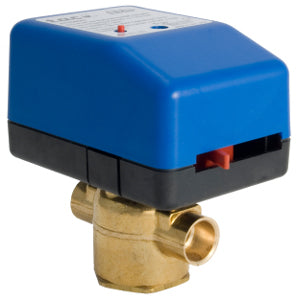

Schneider Electric VM2437P33A000 Valve Actuator Assembly 1 in 2W Zone RP Internal Replacement MPN

Product Description

The Schneider Electric VM2437P33A000 is a valve actuator assembly designed for zone control applications. This product features a robust electric actuator and supports various control signals. It is suitable for use with water and glycol mixtures, making it versatile for many heating and cooling systems.

• Body Size: 25 mm
• Configuration: 2-Way
• Material Trim: Brass

Product Highlights

This valve actuator is easy to integrate and operates effectively in various conditions. It includes a fail-safe mechanism, ensuring operation in case of power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Control Signal: Proportional (0-10 VDC/4-20 mAdc)
• Close-Off Pressure: 35 PSI
• Power Input Voltage: 24 VAC
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 °C
• Ambient Air Temperature For Operation: 1.6-51.6 °C
• Ambient Air Temperature For Storage: -40-70 °C
