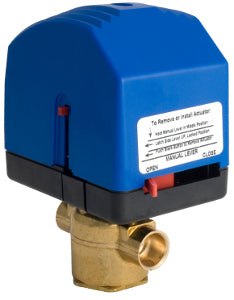

Schneider Electric VM2437P13A000 Valve Assembly 1 Inch 2-Way Zone Valve

Product Description

Schneider Electric VM2437P13A000 is a valve actuator assembly. It is designed specifically for zone applications in HVAC systems. This product integrates features that enhance performance and control.

• Body Size: 1 inch
• Configuration: 2-Way
• Type: Zone

Product Highlights

This valve assembly provides reliable automation for controlling liquid flow in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Close-Off Pressure: 35 PSI
• Actuator Type: Electric
• Control Media: Glycol 25 to 60% and Water
• Control Signal: Proportional
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC
• Protection Rating: NEMA 1
• Mechanical Movement: Rotary
• Ambient Air Temperature for Operation: 1.6 to 51.6 °C
• Relative Humidity: 5 to 95% non-condensing
• Material: Forged Brass
• Product Series: VM2
