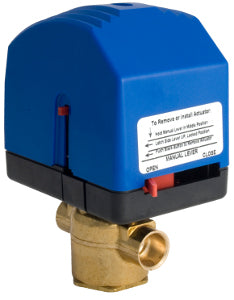

Schneider Electric VM2413P23A000 Valve Assembly Power 1 in

Product Description

Schneider Electric VM2413P23A000 is designed for zone control in heating and cooling systems. This valve assembly is equipped with a two-way configuration and features a brass body for durability. The actuator operates using a proportional control signal.

• Body Size: 1 inch
• Flow Coefficient: 4 cv
• Operating Voltage: 24 VAC

Product Highlights

This valve is suitable for use with water and glycol solutions and should not be used with steam.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Configuration: 2-Way
• Connection Type: Sweat
• Close-Off Pressure: 35 PSI
• Actuator Type: Electric
• Control Media: Glycol 25 to 60% and Water
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Protection Rating: NEMA 1
• Body Material: Forged Brass
• Operating Fluid Temperature: 0-93 °C
