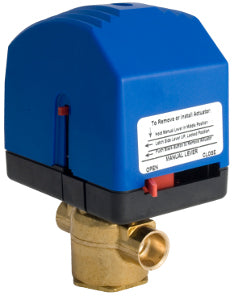

Schneider Electric VM2413P13A000 Valve Assembly 1 in 2-Way Zone Valve

Product Description

Schneider Electric VM2413P13A000 is a valve assembly designed for zone control applications. This assembly features a one-inch body size and a two-way configuration ideal for various fluid control tasks. The valve is constructed from forged brass and operates at a control signal range of zero to ten VDC or four to twenty mA DC.

• Body Size: 1 inch
• Type: Zone
• Actuator Type: Electric

Product Highlights

This valve is not meant for steam applications. It provides reliable control over fluid flow, making it suitable for heating and cooling systems. The actuator has a spring return mechanism, ensuring it returns to a normally closed position when power is lost.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US
• Product Type: Valve-actuator assembly

Technical Specifications

• Flow Coefficient: 4 cv
• Close-Off Pressure: 20 PSI
• Operating Fluid Temperature: 0-93 °C
• Power Input Voltage: 24 VAC
• Ambient Temperature: 1.6-51.6 °C
• Relative Humidity: 5-95% non-condensing
• Protection Rating: IP10
• Mechanical Movement: Rotary
