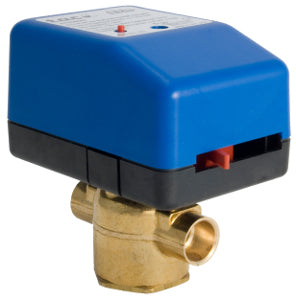

Schneider Electric VM2337P33A000 Valve Assembly 3/4 in 2W Zone Rp Int AP33A000

Product Description

Schneider Electric VM2337P33A000 is a valve assembly designed for two-way control in zone applications. This assembly features a body size of twenty millimeters and connects through Rp internal threads. Its construction includes forged brass material ensuring durability and reliability in various conditions, particularly with water and glycol mixtures. The product operates with an electric actuator type and is not suitable for steam applications.

• Body Size: 20 mm
• Configuration: 2-Way
• Control Signal: Proportional

Product Highlights

This assembly is ideal for HVAC systems and other heating applications requiring precise control for fluid flow.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Control Media: Glycol 25 to 60% and Water
• Flow Coefficient: 7.5 cv
• Power Input Voltage: 24 VAC
• Close-Off Pressure: 35 PSI
• Actuator Type: Electric
• Actuator Range: Erie PopTop
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 °C
• Ambient Air Temperature for Operation: 1.6-51.6 °C
• Relative Humidity: 5-95 % non-condensing
