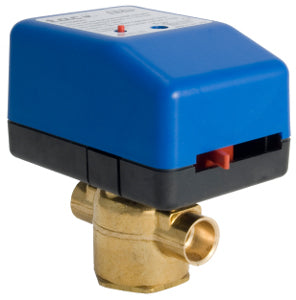

Schneider Electric VM2333P33A000 Valve Assembly 3/4 in 2W Zone Rp Int AP33A000

Product Description

The Schneider Electric VM2333P33A000 is a valve assembly designed for zoned heating and cooling applications. This valve features a three-quarter inch size with a two-way configuration. It is suitable for internal Rp connections. The VM2333P33A000 is made with a brass body and operates with a maximum flow coefficient of four. It is compatible with glycol mixtures from twenty-five to sixty percent and water.

• Body Material: Forged brass
• Power Supply: 24 VAC
• Control Type: Proportional signal

Product Highlights

Ideal for low-pressure systems, this valve assembly is crucial for efficient zone control in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Product Type: Valve-actuator assembly

Technical Specifications

• Actuator Type: Electric rotary
• Control Signal Range: 0 to 10 VDC or 4 to 20 mA DC
• Close-Off Pressure: 35 PSI
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 °C
• Ambient Air Temperature for Operation: 1.6-51.6 °C
• Relative Humidity: 5-95 % non-condensing
• Power Consumption: 1.7 VA AC
