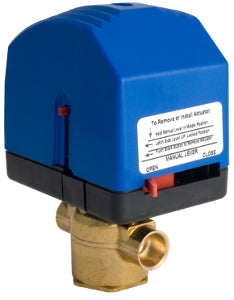

Schneider Electric VM2333P13A000 Valve Assembly 2-Way (3/4 in)

Product Description

Schneider Electric VM2333P13A000 is a zone valve assembly with a body size of three-fourths of an inch. This two-way valve is designed for use in various HVAC applications.

• Control signal range of 0 to 10 VDC/4 to 20 mAdc
• Close-off pressure rated at thirty-five PSI
• Powered by 24 VAC with spring return actuator

Product Highlights

This valve assembly is suitable for glycol and water media, ensuring optimal performance in heating systems. It features a normally closed design and is not intended for steam applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged Brass
• Flow Coefficient: 4 cv
• Protection Rating: NEMA 1
• Mechanical Movement: Rotary
• Ambient Air Temperature for Operation: 1.6 to 51.6 °C
• Ambient Air Temperature for Storage: -40 to 70 °C
• Rated Supply Voltage: 24 VAC
• Control Type: Automatic Reset
