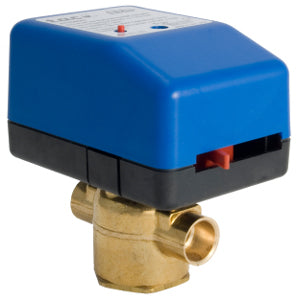

Schneider Electric VM2332T33A000 Erie PopTop Zone Valve Assembly 2-Way Rp Int Brass

Product Description

Schneider Electric VM2332T33A000 is a zone valve assembly designed for efficient control in plumbing systems. This 2-way valve features a forged brass body and is compatible with glycol and water control media.

• Body size: twenty millimeters
• Close-off pressure: fifty PSI
• Power input: twenty-four VAC

Product Highlights

The valve supports non-spring return operation, ideal for systems requiring fail-safe positions. Its NEMA 1 protection rating ensures indoor use, making it suitable for residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Configuration: 2-Way
• Flow Coefficient: 2 cv
• Operating Fluid Temperature: 0 to 93 °C
• Electrical Insulation Class: Not specified
• Ambient Air Temperature For Operation: 1.6 to 51.6 °C
• Ambient Air Temperature For Storage: -40 to 70 °C
• Relative Humidity: 5 to 95% non-condensing
• Power Consumption: 1 VA AC
