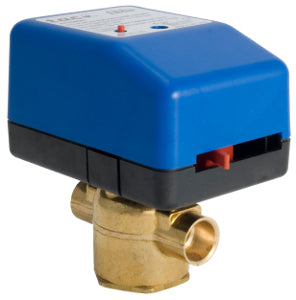

Schneider Electric VM2332P33A000 Valve Assembly 3/4 in 2W Zone Rp Int

Product Description

Schneider Electric VM2332P33A000 is a valve assembly designed for efficient fluid control in zone applications. This product features a body size of twenty millimeters and operates as a two-way valve. It has an internal Rp connection and is made from brass for durability.

• Flow Coefficient: 2 cv
• Control Media: Glycol and water blend
• Electric actuator type with a control signal range of 0 to 10 VDC or 4 to 20 mA

Product Highlights

This valve assembly is not suitable for steam applications. It operates at a close-off pressure of fifty PSI and uses electric power with a voltage input of twenty-four VAC.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged brass
• Actuator Type: Rotary
• Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: 1.6 to 51.6 °C
• Relative Humidity: 5-95% non-condensing
• Power Consumption: 1.7 VA AC
• Mechanical Movement: Rotary
• Control Type: Automatic reset
