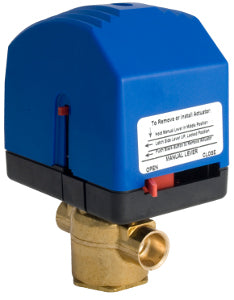

Schneider Electric VM2332P13A000 Valve Assembly 3/4 In 2-Way Zone

Product Description

Schneider Electric VM2332P13A000 is a 2-way zone valve assembly designed for efficient fluid control. It features a body size of three-quarters of an inch and operates with a close-off pressure of fifteen PSI. This electric actuator uses a proportional control signal between zero to ten VDC or four to twenty mAdc, ideal for various HVAC applications.

• Body Material: Forged brass
• Flow Coefficient: 2 cv
• Control Media: Glycol and water

Product Highlights

This valve assembly maintains high reliability and performance in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• Actuator Type: Electric
• Power Input Voltage: 24 VAC
• Control Type: Automatic reset
• Operating Fluid Temperature: 0-93 °C
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Relative Humidity: 5-95 % non-condensing
• Ambient Air Temperature for Operation: 1.6-51.6 °C
