Schneider Electric VM2332 Valve Body 3/4 in 2W Zone Replacement MPN

Product Description

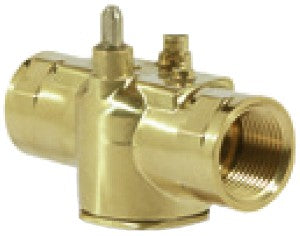

The Schneider Electric VM2332 is a valve body designed specifically for HVAC applications. This valve is a two-way zone valve with a three-quarter inch body size. It features an internal Rp connection and is made with forged brass. The VM2332 is built to handle control media such as glycol mixed with water, operating effectively between zero to ninety-three degrees Celsius. It is a part of the Erie PopTop product line, which ensures reliability and efficiency.

• Body Size: 20 mm (3/4 in)
• Configuration: 2-Way
• Material: Brass

Product Highlights

This valve is essential for managing zone control in heating and cooling systems, ensuring optimal performance without the risk of steam exposure.

Product Information

Standard Information

• Product Line: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 2 Cv
• Operating Fluid Temperature: 0-93 °C
• Seat Leakage: Class IV (0.01 %)
• Weight: 0.408 kg
• Height: 6.4 cm
• Width: 10.1 cm
• Length: 7.6 cm
