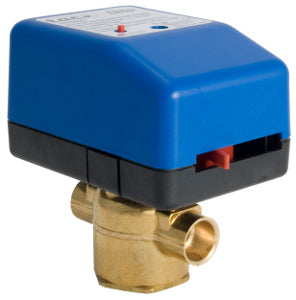

Schneider Electric VM2253P33A000 Valve Actuator Assembly 24 V AC

Product Description

Schneider Electric VM2253P33A000 is a valve actuator assembly designed for use in zone valve applications. This product features an electric actuator with a power input voltage of twenty-four volts alternating current. The assembly includes a valve body made from forged brass with a flow coefficient of four cv. It is compatible with a control signal range of zero to ten VDC or four to twenty mAdc.

• Body Size: 1/2 in
• Configuration: 2-Way
• Control Type: Automatic Reset

Product Highlights

This valve actuator is suitable for controlling fluid media such as glycol and water. It is rated for a close-off pressure of thirty-five PSI and has a protection rating of NEMA 1.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Actuator Type: Electric
• Control Signal: Proportional
• Operating Fluid Temperature: 0-93 °C
• IP Degree Of Protection: IP10
• Ambient Air Temperature For Operation: 1.6-51.6 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 5-95 % non-condensing
• Power Consumption In VA: 1.7 VA AC
