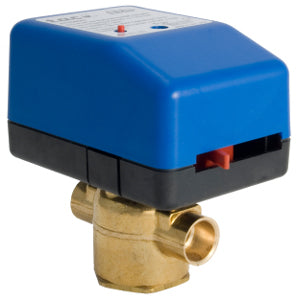

Schneider Electric VM2233T33A000 Erie PopTop Zone Valve Assembly 24 VAC

Product Description

The Schneider Electric VM2233T33A000 is a zone valve assembly designed for reliable control in HVAC systems. This assembly features a two-way valve configuration and connects via Rp internal threads. It utilizes a brass body, ensuring durability and resistance to corrosion. The valve operates with a power input of 24 VAC and is designed for use with glycol and water mixtures.

• Body Size: 15 mm
• Flow Coefficient: 4 cv
• Close-Off Pressure: 35 PSI

Product Highlights

This valve assembly is not intended for steam applications. It has an electric actuator that provides precise control through a floating signal. The assembly includes tool-less connections for easy installation and maintenance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Control Media: Glycol 25% to 60% and Water
• Actuator Type: Electric
• Protection Rating: NEMA 1
• Ambient Temperature for Operation: 1.6-51.6 °C
• Close-Off Pressure: 35 PSI
• Power Input Voltage: 24 VAC
• Mechanical Movement: Rotary
• Body Material: Brass
• Humidity Range: 5-95% non-condensing
