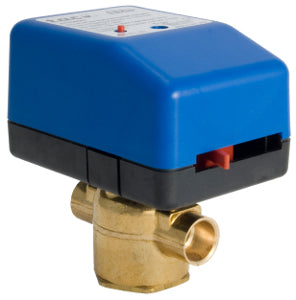

Schneider Electric VM2233P33A000 Zone Valve Assembly 2-Way 24 V AC

Product Description

Schneider Electric VM2233P33A000 is a zone valve assembly designed for efficient temperature control in hydronic heating and cooling systems. This unit features a two-way valve configuration with a body size of one-half inch, making it suitable for various applications. The actuator is electric and designed for proportional control using a 0 to 10 VDC or 4 to 20 mAdc control signal.

• Body size of one-half inch
• Flow coefficient of four cv
• Actuator type is electric

Product Highlights

This valve supports glycol and water as the control media and is not suitable for steam applications. The mechanical movement is rotary, and the product has a close-off pressure rating of thirty-five PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• MPN: VM2233P33A000
• Body Material: Forged brass
• Power Input Voltage: 24 VAC
• Actuator: AP33A000
• Flow Coefficient: 4 cv
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 °C
• Ambient Air Temperature For Operation: 1.6-51.6 °C
• Relative Humidity: 5-95 % non-condensing
