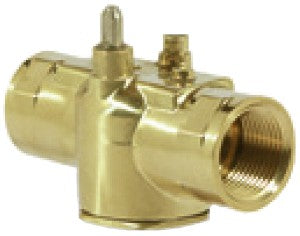

Schneider Electric VM2233 Valve Body 2-Way (1/2 in) No Steam

Product Description

The Schneider Electric VM2233 is a 2-way valve body designed for zone control. With an internal connection and a size of one half inch, it is suitable for use with glycol and water mixtures. The VM2233 valve is part of the Erie PopTop product line and is manufactured from forged brass.

• Body Size: 15 mm (1/2 in)
• Configuration: 2-Way
• Material: Forged Brass

Product Highlights

Engineered for durability and reliability in temperature conditions ranging from zero to ninety-three degrees Celsius, this valve features a flow coefficient of four Cv and is ideal for a variety of heating and cooling applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type: Zone
• Control Media: Glycol 25% to 60% and Water
• Seat Leakage: Class IV (0.01%)
• Operating Fluid Temperature: 0-93 °C
• Flow Coefficient: 4 Cv
• Product Line: Erie PopTop
• Product Series: VM2
• Warning: Not for use with steam
