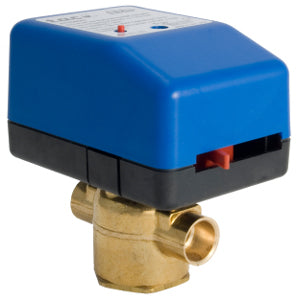

Schneider Electric VM2232T33A000 Erie PopTop Zone Valve Assembly 24 VAC (1/2 In, 2-Way)

Product Description

The Schneider Electric VM2232T33A000 is an Erie PopTop zone valve assembly. This device operates at a power input of twenty-four volts alternating current. It features a two-way configuration and is designed for heating applications. The valve is suitable for use with water and glycol mixtures. It is constructed from brass and is rated for a close-off pressure of fifty PSI.

• Body Size: 15 mm
• Control Signal: Floating
• Actuator Type: Electric

Product Highlights

This valve assembly is commonly used in heating systems. It is designed for reliable control of fluid flow in HVAC installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Erie PopTop

Technical Specifications

• MPN: VM2232T33A000
• Body Material: Brass
• Flow Coefficient: 2 cv
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 °C
• Electrical Power Consumption: 1 VA AC
• Ambient Air Temperature For Operation: 1.6-51.6 °C
• Close-Off Pressure: 50 PSI
