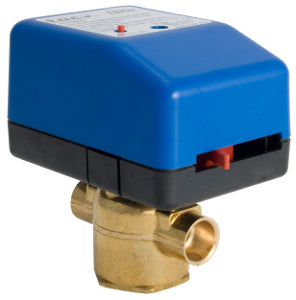

Schneider Electric VM2232P33A000 valve actuator assembly 24 V AC

Product Description

Schneider Electric VM2232P33A000 is a valve actuator assembly designed for two-way zone control. This product is equipped with features suitable for HVAC applications.

• Body Size: half inch
• Flow Coefficient: two cv
• Operating Pressure: fifty PSI

Product Highlights

Ideal for controlling flows in water and glycol systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Control Signal: Proportional (0-10 VDC / 4-20 mAdc)
• Power Input Voltage: 24 VAC
• Connection Type: Rp Internal
• Material Trim: Brass
• Close-Off Pressure: 50 PSI
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Operating Fluid Temperature: 0-93 °C
• Ambient Air Temperature for Operation: 1.6-51.6 °C
• Relative Humidity: 5-95% non-condensing
• Power Consumption: 1.7 VA AC
