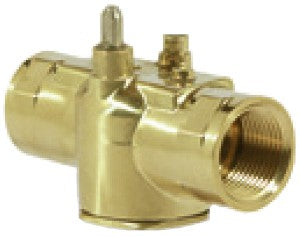

Schneider Electric VM2232 Valve Body 2-Way 1/2 in Erie PopTop

Product Description

The Schneider Electric VM2232 is a valve body designed for efficient fluid control in various applications. This valve features a half-inch body size and a two-way configuration, suitable for zone control. The connection type is Rp internal, and the material used is robust brass for durability. It operates effectively with a flow coefficient of 2 Cv and can handle glycol and water mixtures ranging from twenty-five to sixty percent.

• Body Size: 1/2 inch
• Material Trim: Brass
• Not for use with steam

Product Highlights

This product is part of the Erie PopTop series and is ideal for heating and cooling systems that require reliable zone valve control.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Forged brass
• Flow Coefficient: 2 Cv
• Operating Fluid Temperature: 0-93 °C
• Seat Leakage: Port A: Class IV (0.01 %)
• Connection Type: Rp Internal
• Product Series: VM2
• Control Media: Glycol (25-60%) and Water
