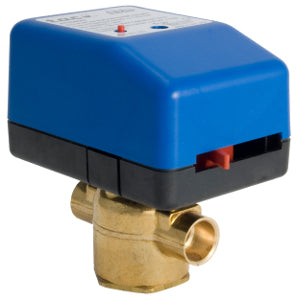

Schneider Electric VM2231P33A000 Valve Assembly 2-Way Zone Brass - Power 24 V AC

Product Description

The Schneider Electric VM2231P33A000 valve assembly is a reliable component designed for zone heating and cooling systems. This 2-way valve is crafted from brass and operates effectively within a temperature range from zero to ninety-three degrees Celsius. The actuator operates with a proportional control signal ranging from zero to ten volts direct current or four to twenty milliamperes direct current.

• Body size: fifteen millimeters
• Close-off pressure: fifty PSI
• Protection rating: NEMA 1

Product Highlights

This product is suitable for glycol and water applications and has a maximum flow coefficient of one. It features a fail-in-place positioning during loss of power, ensuring consistent operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Control Media: Glycol 25 to 60% and Water
• Power Input Voltage: 24 VAC
• Operating Fluid Temperature: 0-93 °C
• Control Type: Automatic reset
• Seating Seal Material: Brass
• Ambient Air Temperature for Operation: 1.6-51.6 °C
• Relative Humidity: 5-95 % non-condensing
