SCHNEIDER ELECTRIC VM2221T33A00T ZONE VALVES
SCHNEIDER ELECTRIC VM2221T33A00T ZONE VALVES

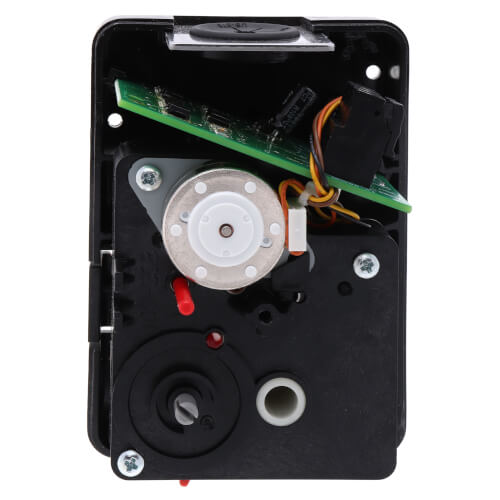

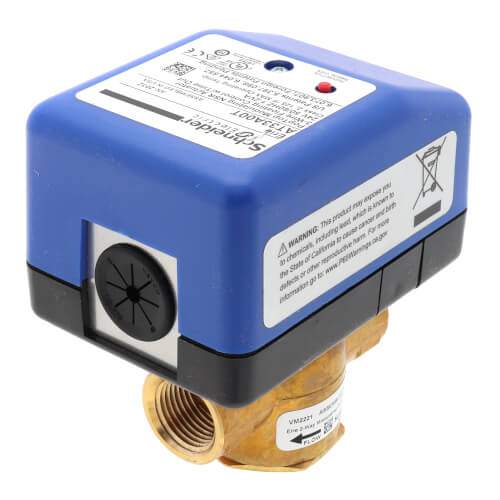

Erie VM2221T33A00T 1/2 2-Way NPT Floating Non-Spring Return Zone Valve 24V

Erie VM2221T33A00T 1/2 2-Way NPT Floating Non-Spring Return Zone Valve 24V

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: VM2221T33A00T
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$177.87
$177.87
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Erie VM2221T33A00T is a floating, non-spring return zone valve with a two-way NPT connection. This valve is ideal for various heating, ventilation, and air conditioning (HVAC) applications. It operates on 24V and features a flow capacity of 1 CV.

  • Size: 1/2 inch
  • Body Pattern: 2-Way
  • Electric Actuator

Product Highlights

Built for easy, tool-less installation, this valve offers efficient and reliable control for your HVAC systems.

Product Information

Standard Information

  • Manufacturer: Schneider Electric (Erie)
  • Model: VM2221T33A00T

Technical Specifications

  • Size: 1/2 inch
  • Body Pattern: 2-Way
  • Connection Type: Threaded
  • Flow Capacity (Cv): 1
  • Actuator Type: Electric
  • Voltage: 24V
  • Non-Spring Return: Yes
  • Power Input Voltage: 24 VAC
  • Control Signal: 0 to 10 VDC or 4 to 20 mAdc
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 1
