Schneider Electric VLSH2H5B Disconnect Switch TeSys VLS Black Rotary Handle Hole Mounting 65x65mm

Product Description

Schneider Electric VLSH2H5B is a disconnect switch that integrates into control systems for various applications. This includes material handling, HVAC systems, pumping, solar energy, and mining. The VLS series includes models rated from sixteen amperes to one hundred twenty-five amperes.

• Rotary handle compatible with VLS3P DIN rail mount disconnect switches.
• Accepts 1 to 3 padlocks with diameters between zero point sixteen inches to zero point thirty-one inches.
• NEMA rated for indoor and outdoor applications, including IP65 rating for dust and water resistance.

Product Highlights

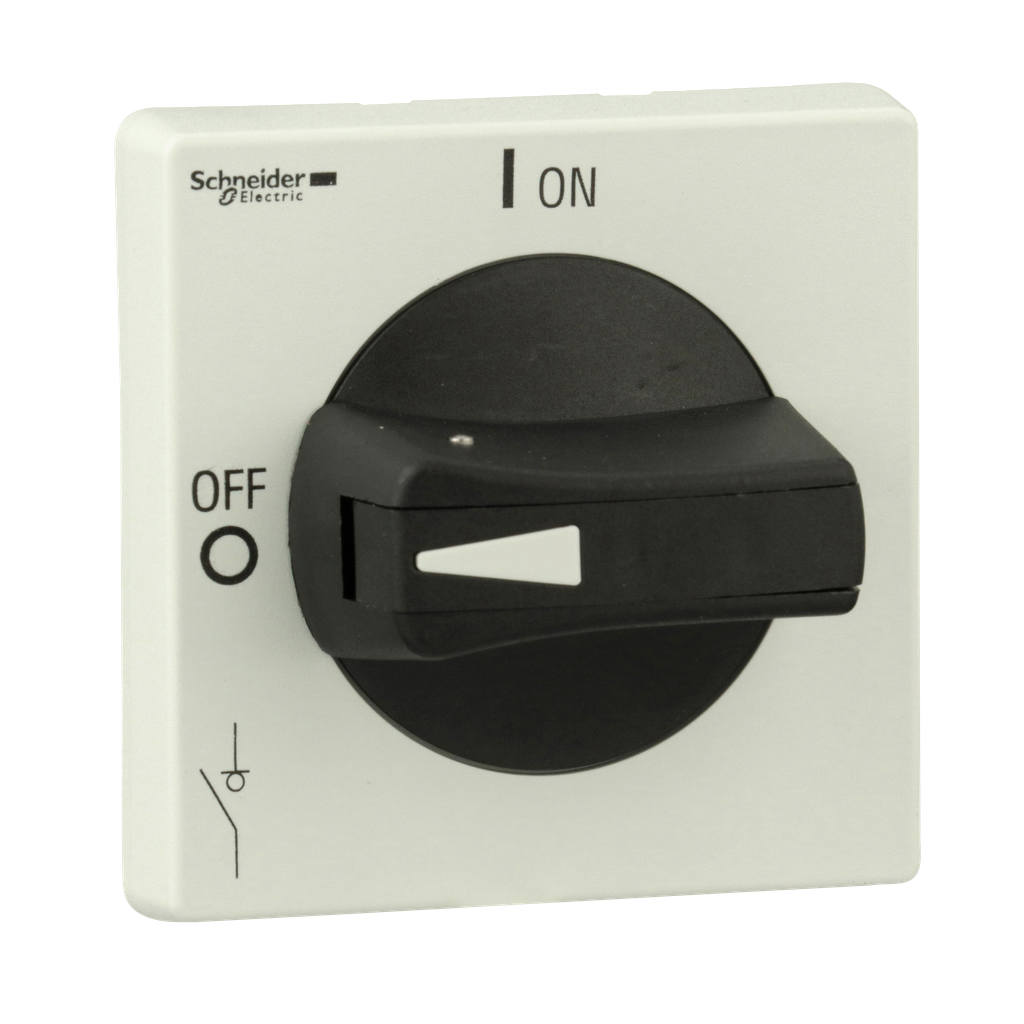

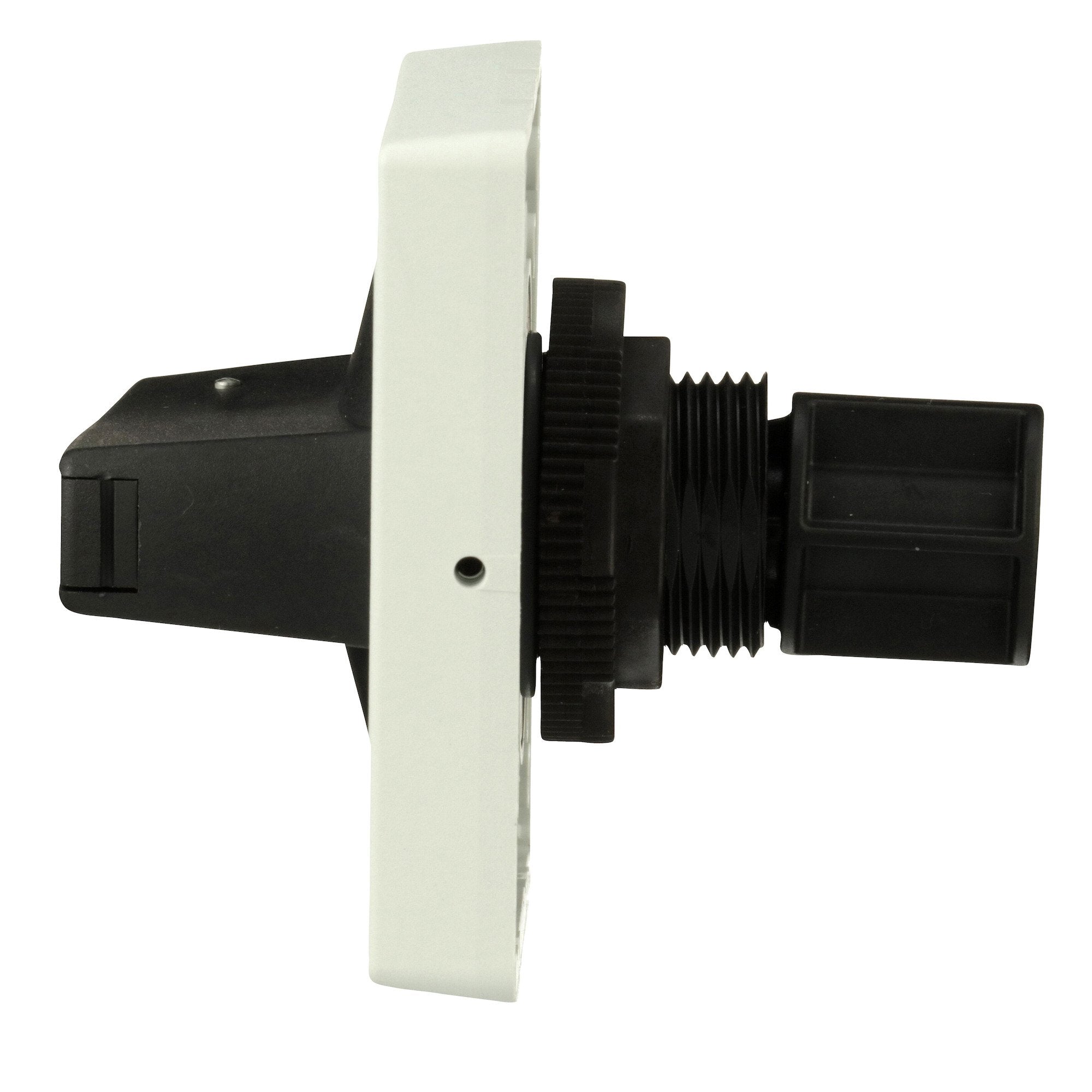

This switch features a black rotary handle that mounts into a hole of zero point eighty-nine inches. It operates between the positions of OFF and ON, providing reliable control over connected equipment.

Product Information

Standard Information

• Catalog Number: VLSH2H5B
• Manufacturer: Schneider Electric

Technical Specifications

• Dimensions: 2.56 inches (height) x 2.56 inches (width) x 2.85 inches (depth)
• Weight: 0.16 pounds
• Actuator Color: Black
• Country of Origin: Italy
• Mounting Type: Hole mounting
• Applicable Standards: NEMA 1, 3R, 12, 4, 4X
• Rated Current: Available in ratings from 16A to 125A
• IP Rating: IP65
