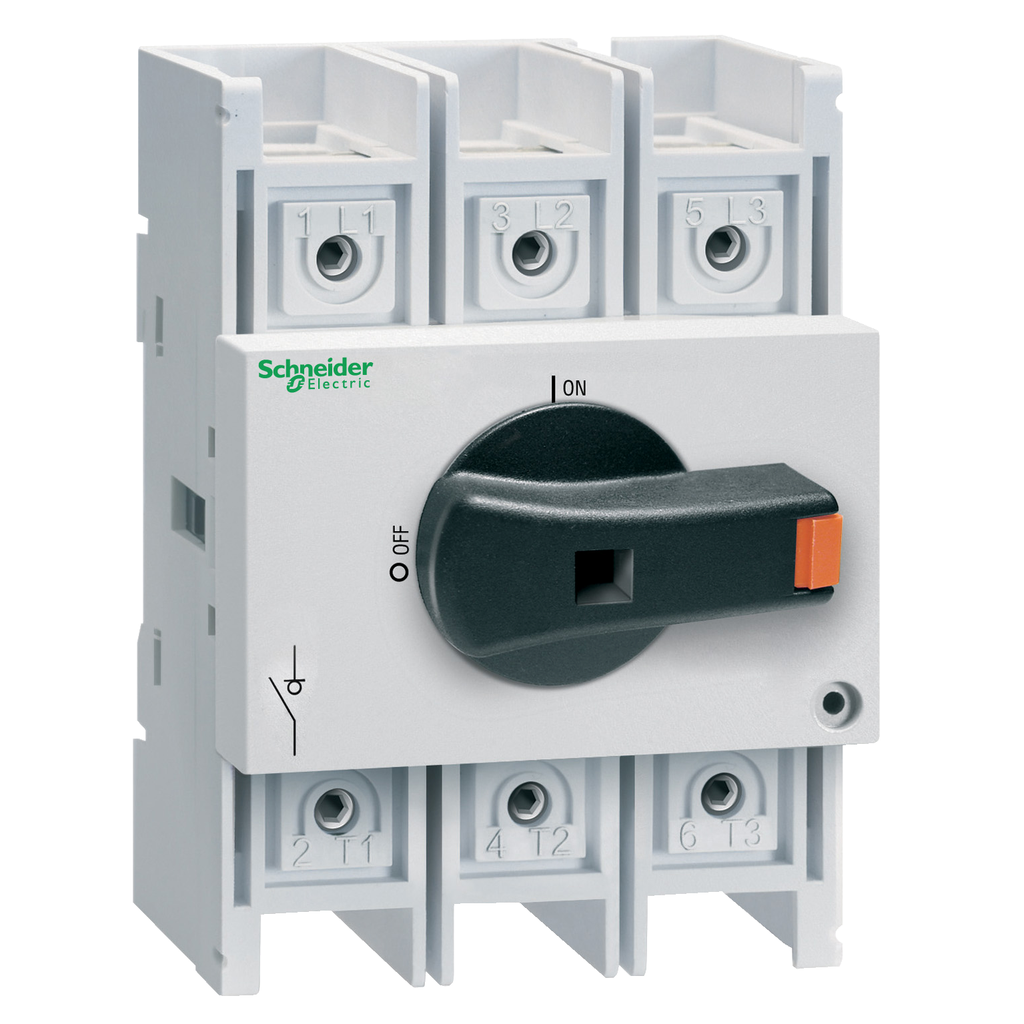

Schneider Electric VLS3P125R2 Disconnect Switch 125A DIN Rail Mount

Product Description

Schneider Electric VLS3P125R2 is a disconnect switch designed for integration into various control systems. Its applications include material handling, HVAC, pumping, solar energy, and mining. This device belongs to a family of disconnect switches ranging from sixteen to one hundred twenty-five amperes. The VLS3P125R2 has three normally open poles and is suitable for DIN rail mounting.

• Rated for seven point five horsepower at 120 volts AC
• Meets UL, CSA, and IEC standards
• Accepts wires from twelve AWG to one AWG

Product Highlights

This disconnect switch is UL Listed as per UL98, certified by CSA 22.2, and complies with IEC 60947-3 requirements. It features a high short circuit current rating of up to fifty kA at 600 volts. Designed for durability and efficiency in electrical installations, it is a reliable choice for electrical professionals.

Product Information

Standard Information

• Catalog Number: VLS3P125R2
• Brand: Schneider Electric

Technical Specifications

• Voltage: 690 Volt
• Wattage: 55 kW at 400 Volt
• Number of Poles: 3 Pole
• Weight: 0.80 lb
• Height: 3.94 inches
• Width: 2.75 inches
• Depth: 2.95 inches
• Country of Origin: Italy
