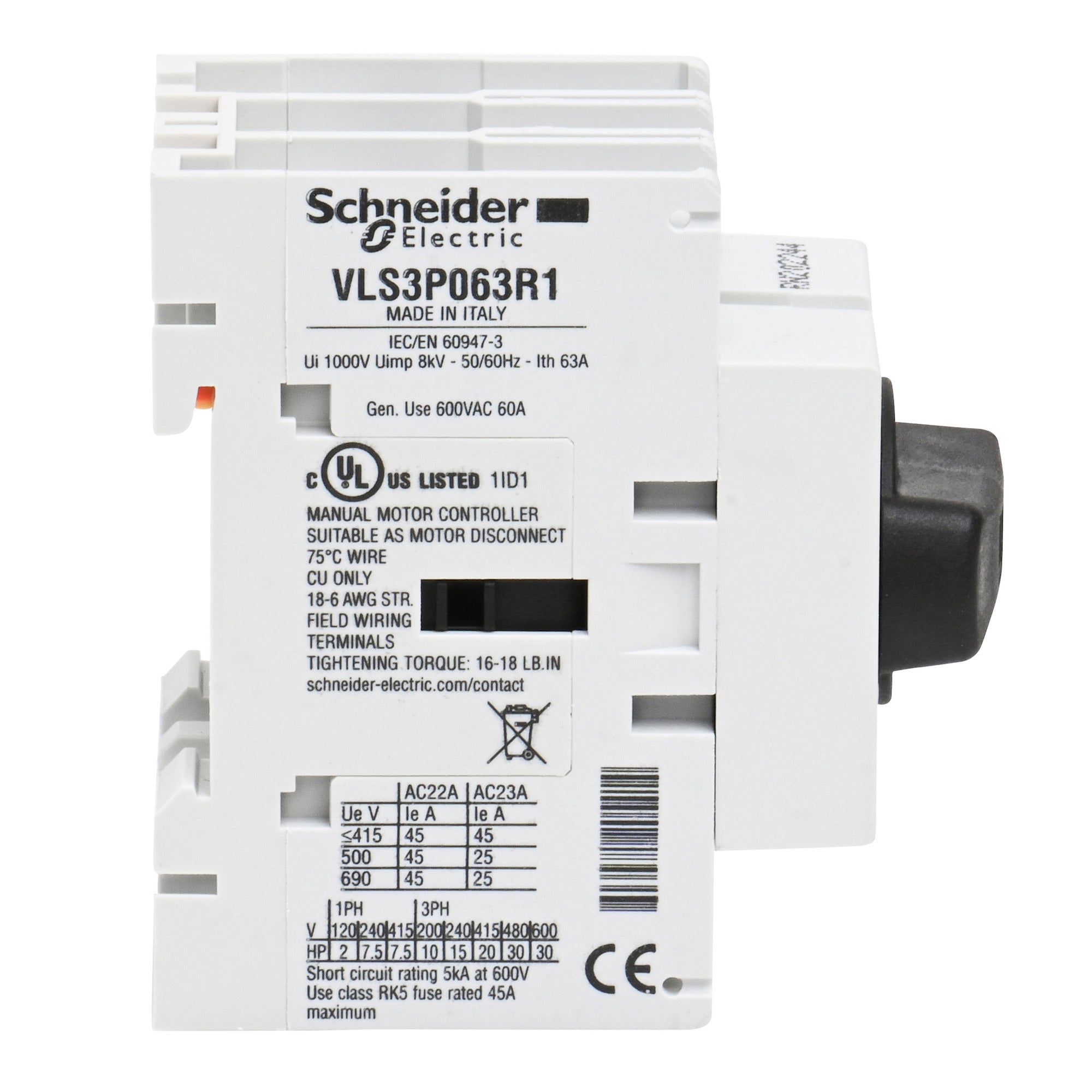

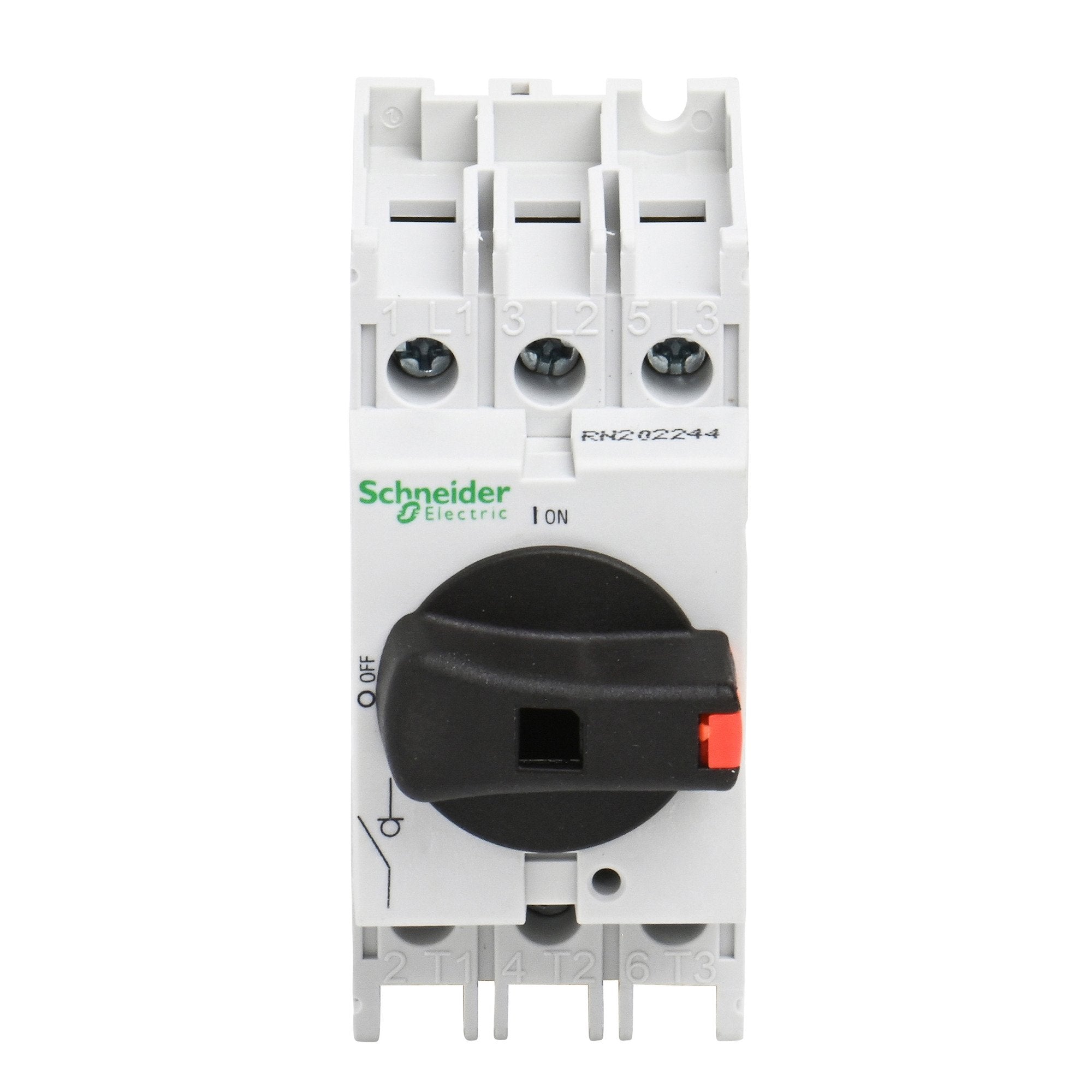

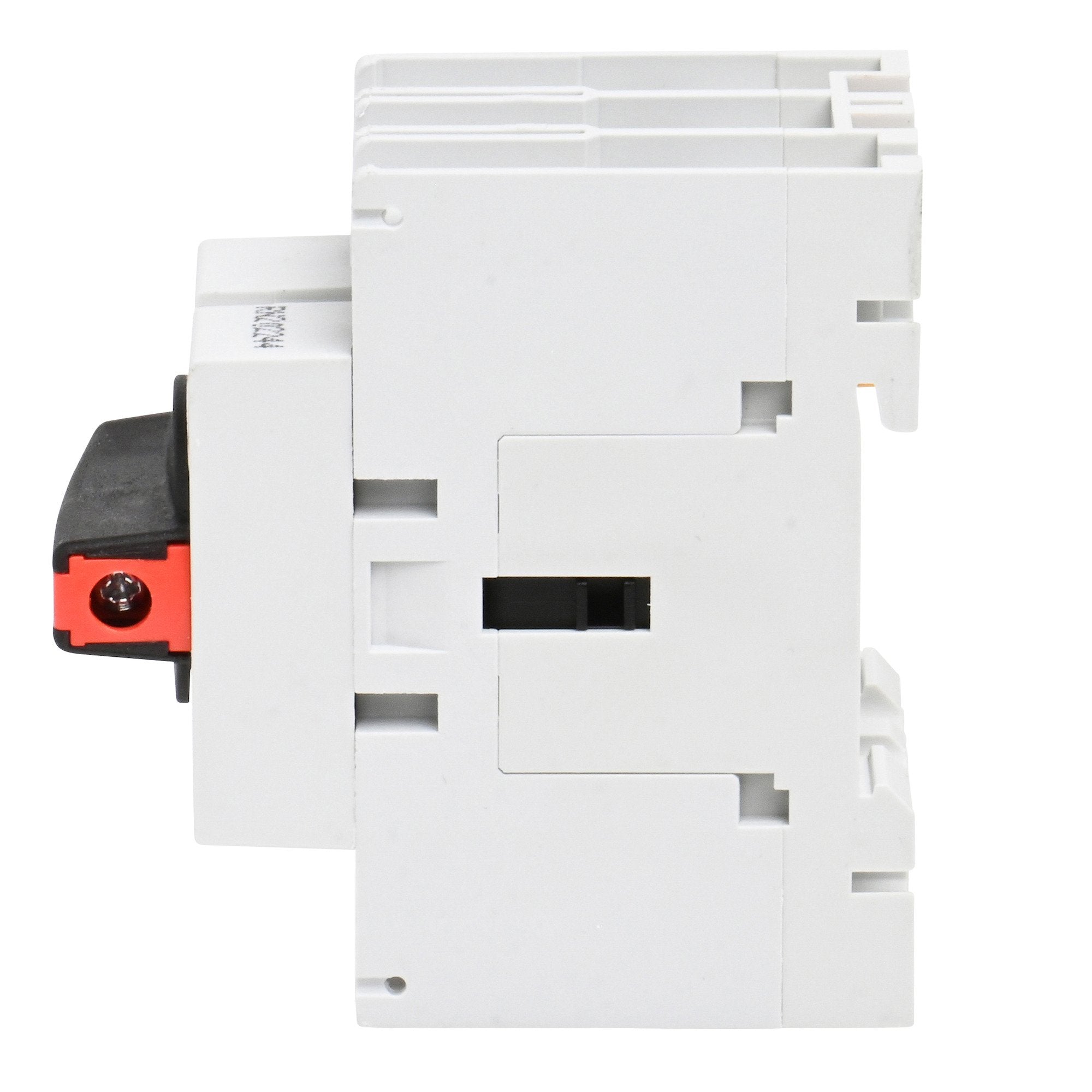

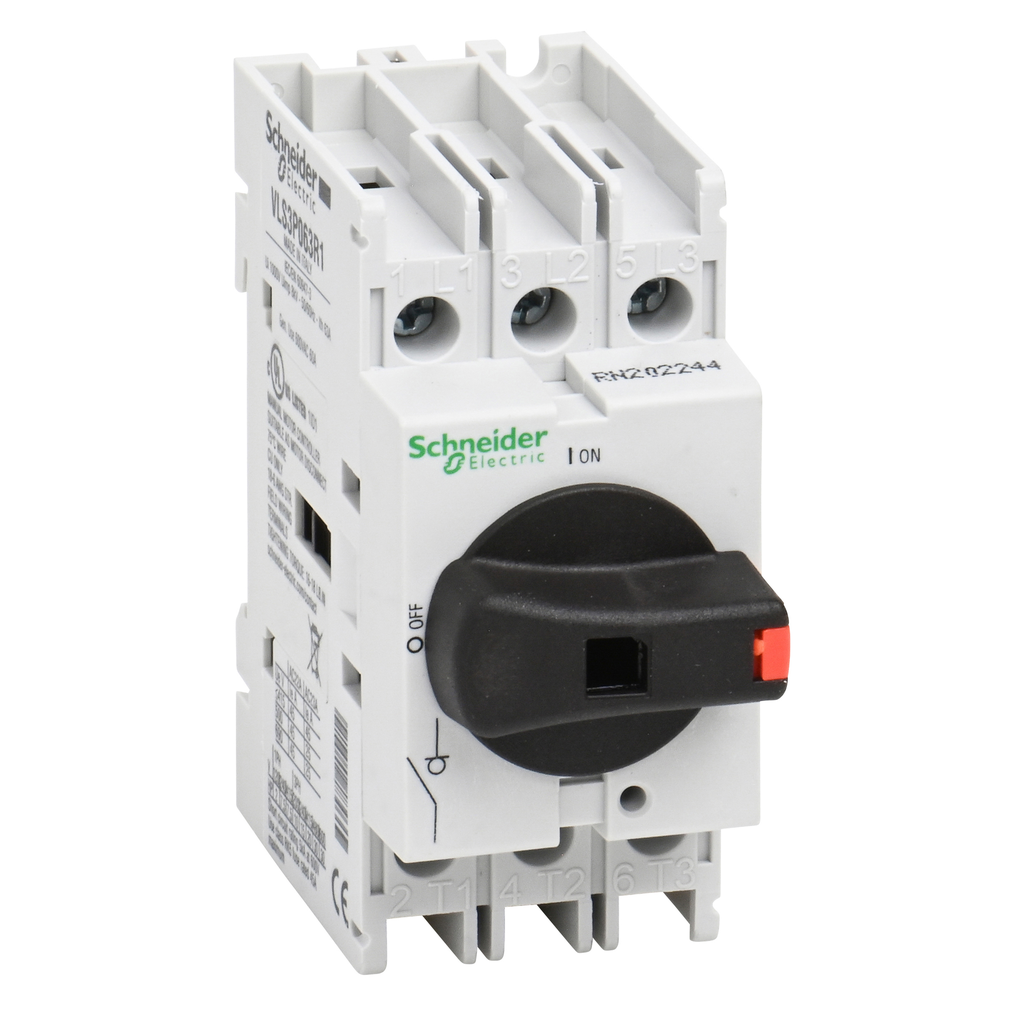

Schneider Electric VLS3P063R1 Disconnect Switch 60A 30HP at 480VAC UL508 Three Phase 5kA SCCR

Product Description

Schneider Electric VLS3P063R1 is a disconnect switch designed for use in control systems across various applications such as HVAC, material handling, and solar energy. This disconnect switch is suitable for a wide range of voltages and amperages, providing reliable disconnect solutions. It has a current rating of sixty amps and integrates seamlessly into systems with voltages up to six hundred ninety volts.

• Rated for UL508 and UL98 standards
• Handles a maximum of thirty horsepower at four hundred eighty volts
• Meets IEC requirements with a twenty-two kilowatt rating at four hundred volts

Product Highlights

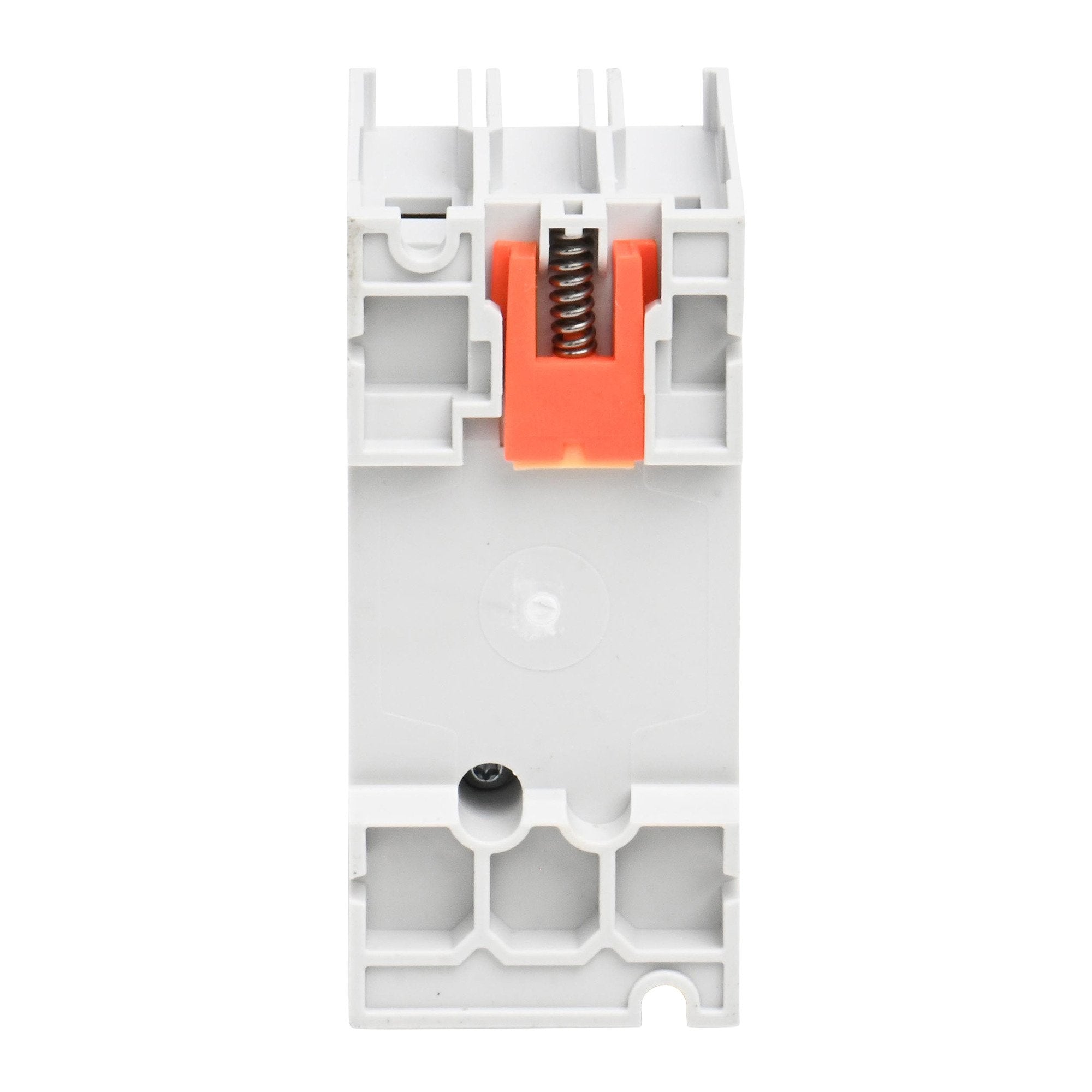

This disconnect switch also features three normally open poles and is designed for DIN rail mounting, which facilitates installation across various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VLS3P063R1

Technical Specifications

• Catalog Number: VLS3P063R1
• Voltage Rating: 690 Volt
• Wattage: 22 kW
• Amperage: 60 Amp
• Number of Poles: 3 Pole
• Interrupt Rating: 5 kA
• Size: 3.07 inches height, 1.42 inches width, 2.95 inches depth
• Weight: 0.30 lbs
