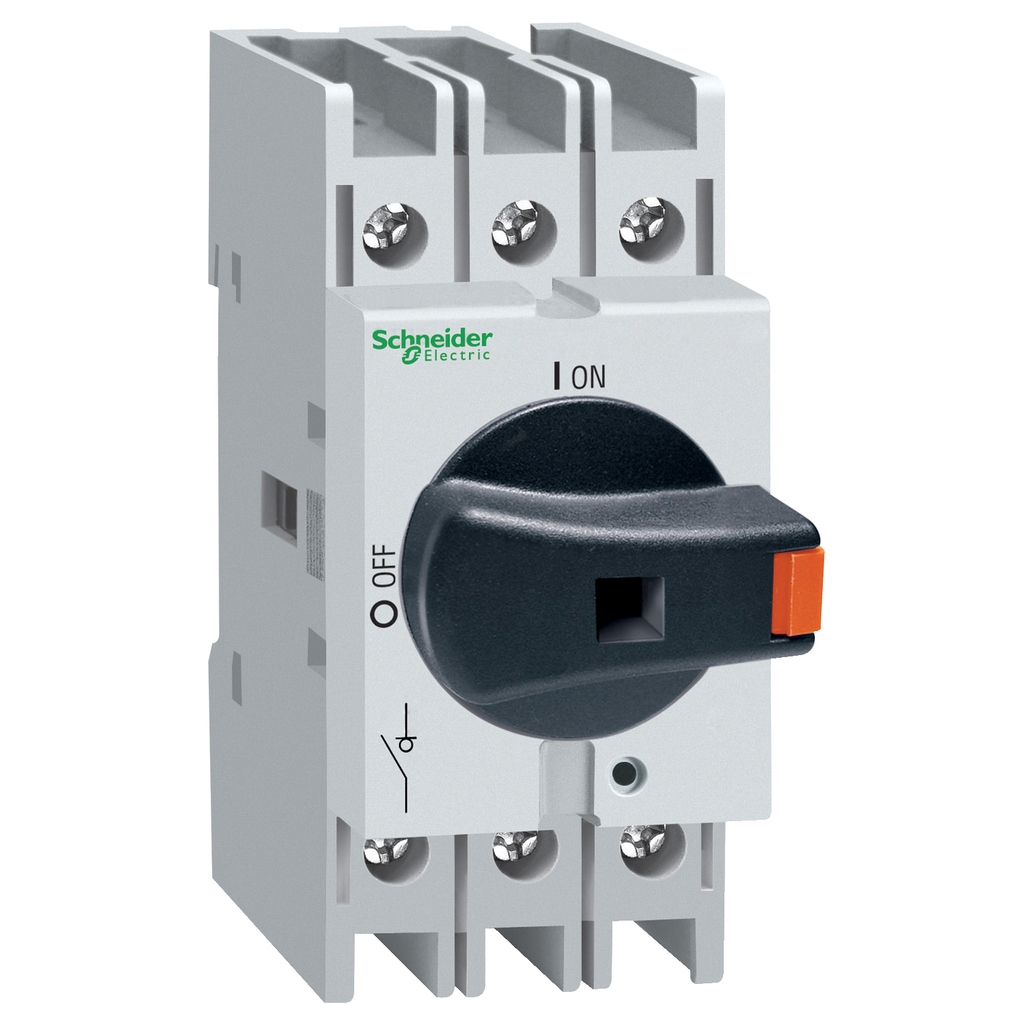

SCHNEIDER ELECTRIC VLS3P032R1 RELAYS & SWITCHES

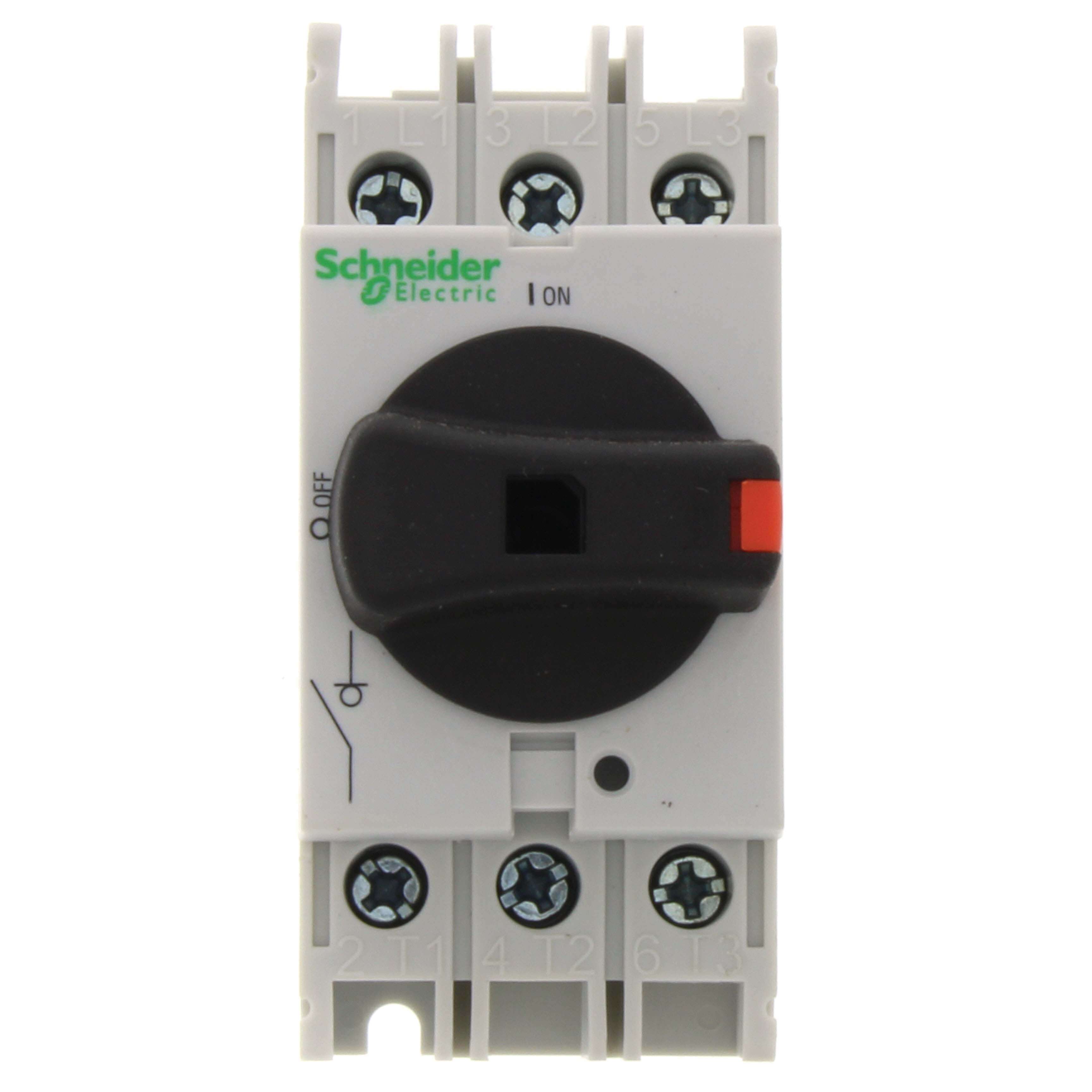

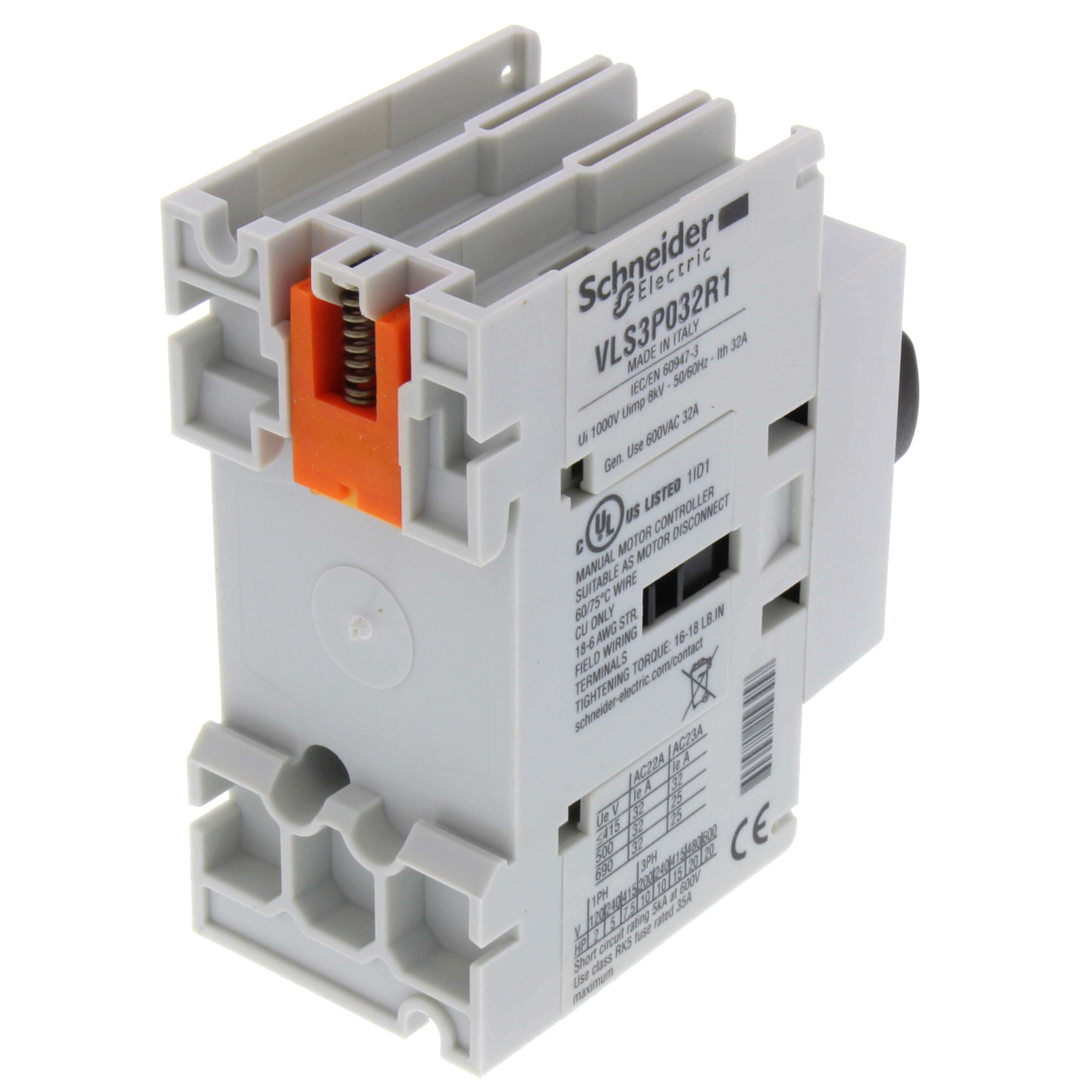

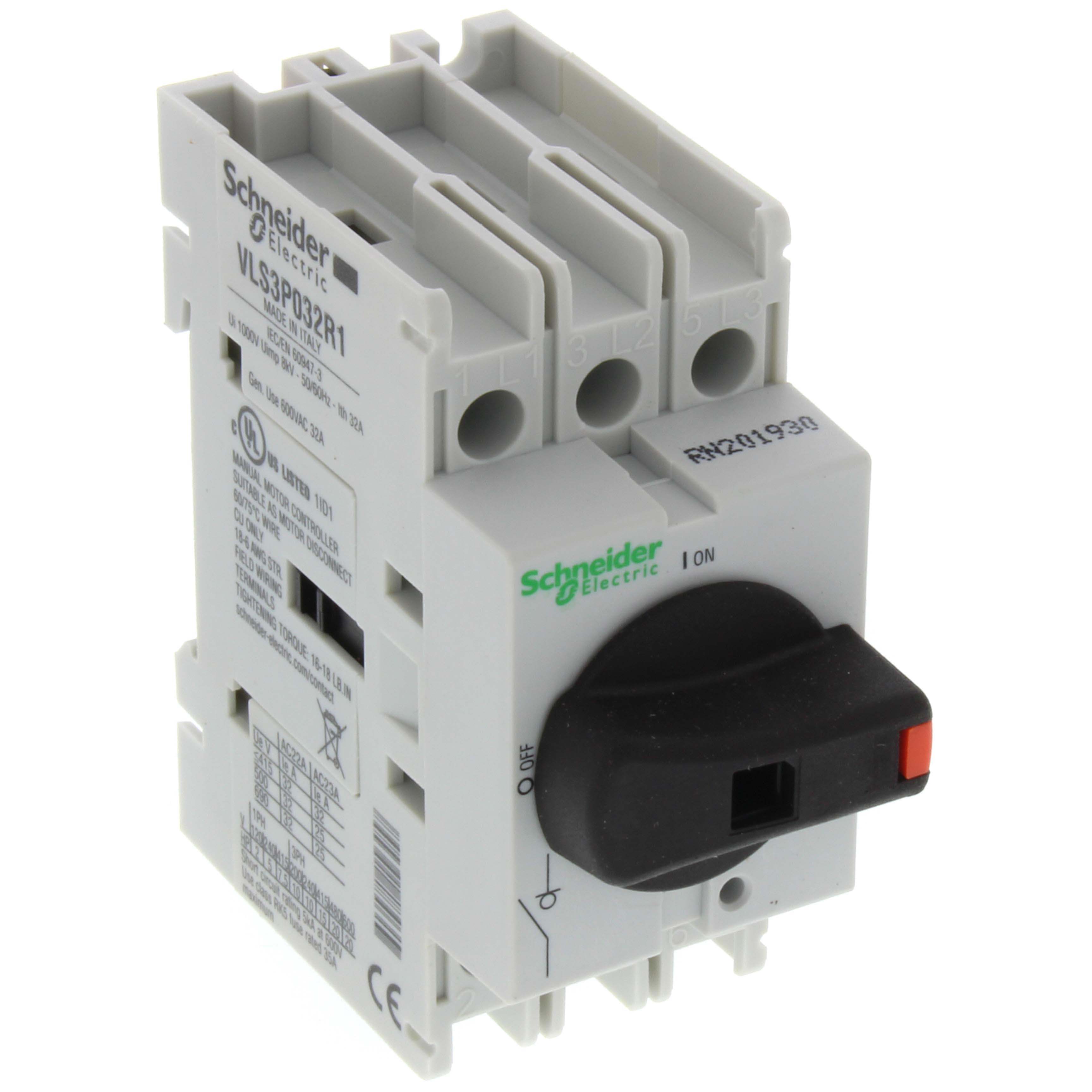

SCHNEIDER ELECTRIC Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount
SCHNEIDER ELECTRIC Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount
SCHNEIDER ELECTRIC Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount
SCHNEIDER ELECTRIC VLS3P032R1 RELAYS & SWITCHES
Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount
Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount
Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount

Schneider Electric VLS3P032R1 Disconnect Switch, 32A, 20HP at 480VAC, UL508, DIN Rail Mount

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: VLS3P032R1
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Schneider Electric VLS3P032R1 is a disconnect switch designed for control systems in various applications such as HVAC, pumping, and solar energy. It has a rated capacity ranging from sixteen to one hundred twenty-five amps. This model features three normally open poles and is suitable for DIN rail mounting.

  • UL508 motor disconnect rated.
  • Short circuit current rating of 5 kA at six hundred volts.
  • Compatible with wire sizes from eighteen AWG to six AWG.

Product Highlights

This disconnect switch is cULus Listed and meets IEC 60947-3 standards.

Product Information

Standard Information

  • Catalog Number: VLS3P032R1
  • Manufacturer: Schneider Electric

Technical Specifications

  • Voltage: 690 Volt
  • Wattage: 20 HP at 480 VAC
  • Amperage: 32 Amp
  • Number of Poles: 3 Pole
  • Height: 3.07 inches
  • Width: 1.42 inches
  • Depth: 2.95 inches
  • Weight: 0.30 lbs
