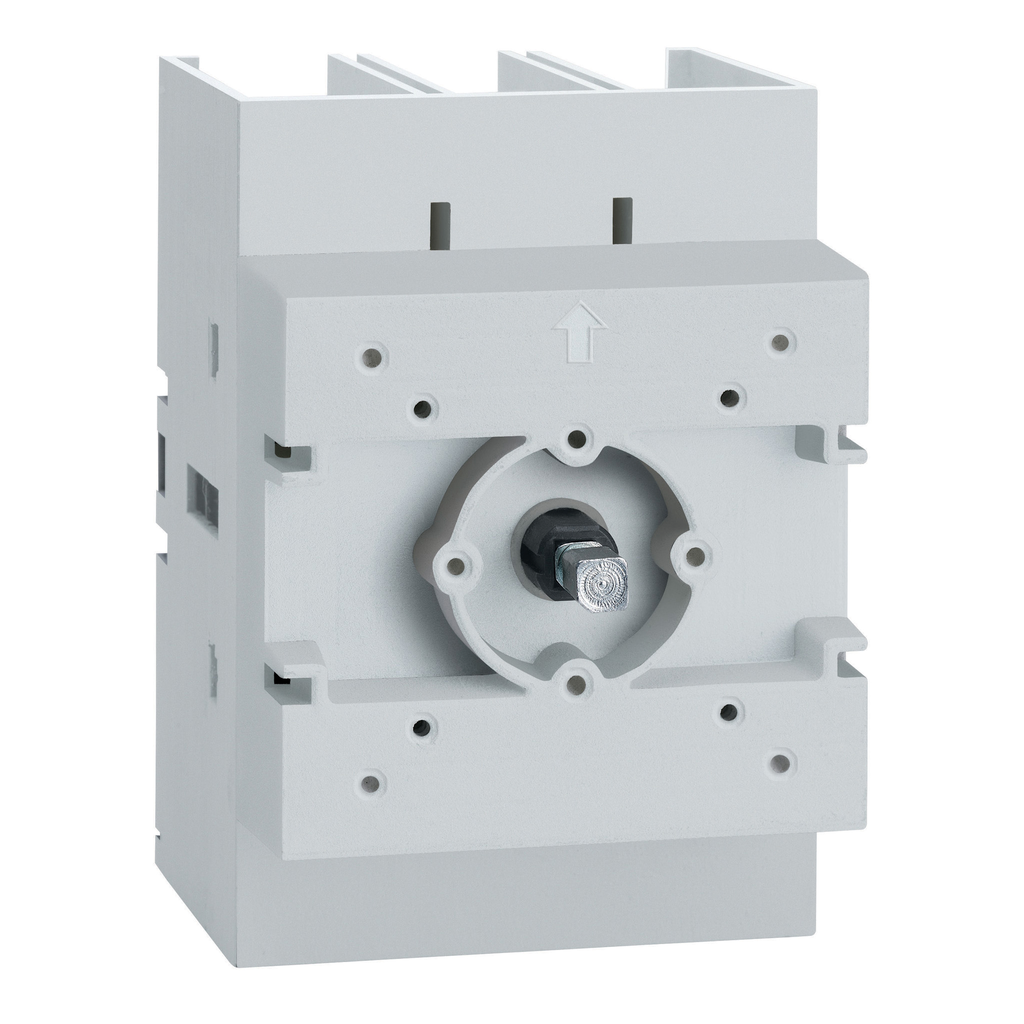

Schneider Electric VLS3P030D2 Disconnect Switch 30A 20HP at 480VAC UL98

Product Description

The Schneider Electric VLS3P030D2 disconnect switch is designed for use in control systems across various applications including material handling, HVAC, and solar energy.

• Rated for up to 30 amps with three normally open poles.
• UL508 and UL98 compliance for motor disconnect switches.
• Mounts directly to enclosure doors.

Product Highlights

This switch features a compact design and accommodates wire from twelve AWG to one AWG. It meets multiple certification standards ensuring safety and reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: VLS3P030D2
• HP Rating: 2 HP at 120V, 5 HP at 240V, 10 HP at 200-208V, 20 HP at 480V, 30 HP at 600V
• Short Circuit Current Rating (SCCR): Up to 50 kA at 600V
• Dimensions: 3.94 inches tall, 2.76 inches wide, 2.76 inches deep
• Weight: 0.80 lbs
• Operating Temperature: -25 to 55 degrees C
• Wire Sizes: Accepts 12 AWG to 1 AWG and 4 mm to 70 mm
