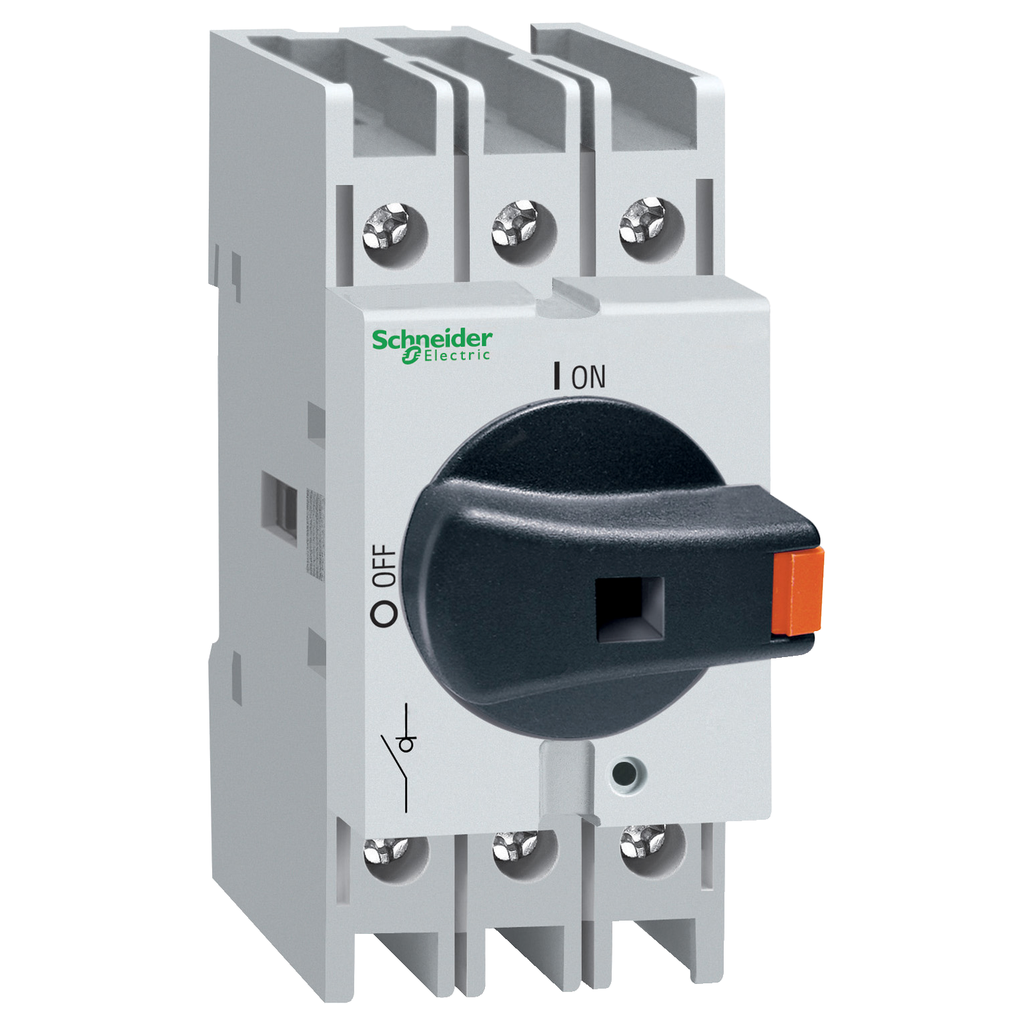

Schneider Electric VLS3P016R1 Disconnect Switch 16A 10HP at 480VAC

Product Description

The Schneider Electric VLS3P016R1 is a disconnect switch ideal for integration into control systems for various applications including HVAC, solar energy, and material handling. This switch has a rated capacity of 16 amperes and supports operations in single phase or three phase electrical systems. It features three normally open poles and is designed for DIN rail mounting, making installation straightforward.

• UL508 motor disconnect switch rated for use.
• 1 horsepower rating at 120 volts AC.
• Durable construction with acceptance for wire sizes ranging from 18 AWG to 6 AWG.

Product Highlights

This disconnect switch is cULus Listed, adhering to IEC 60947-3 standards and capable of handling short circuit currents up to 5 kA at six hundred volts. The compact dimensions of 3.07 inches in height, 1.42 inches in width, and 2.95 inches in depth ensure it fits even in tight spaces.

Product Information

Standard Information

• Catalog Number: VLS3P016R1
• Brand: Schneider Electric

Technical Specifications

• Poles: 3 NO (Normally Open)
• Voltage Rating: 690 Volt
• Amperage Rating: 16 Amp
• Operating Temperature Range: -25 to 55 degrees C
• Country of Origin: Italy
• Weight: 0.30 lb
• Dimensions: 3.07 inches height, 1.42 inches width, 2.95 inches depth
