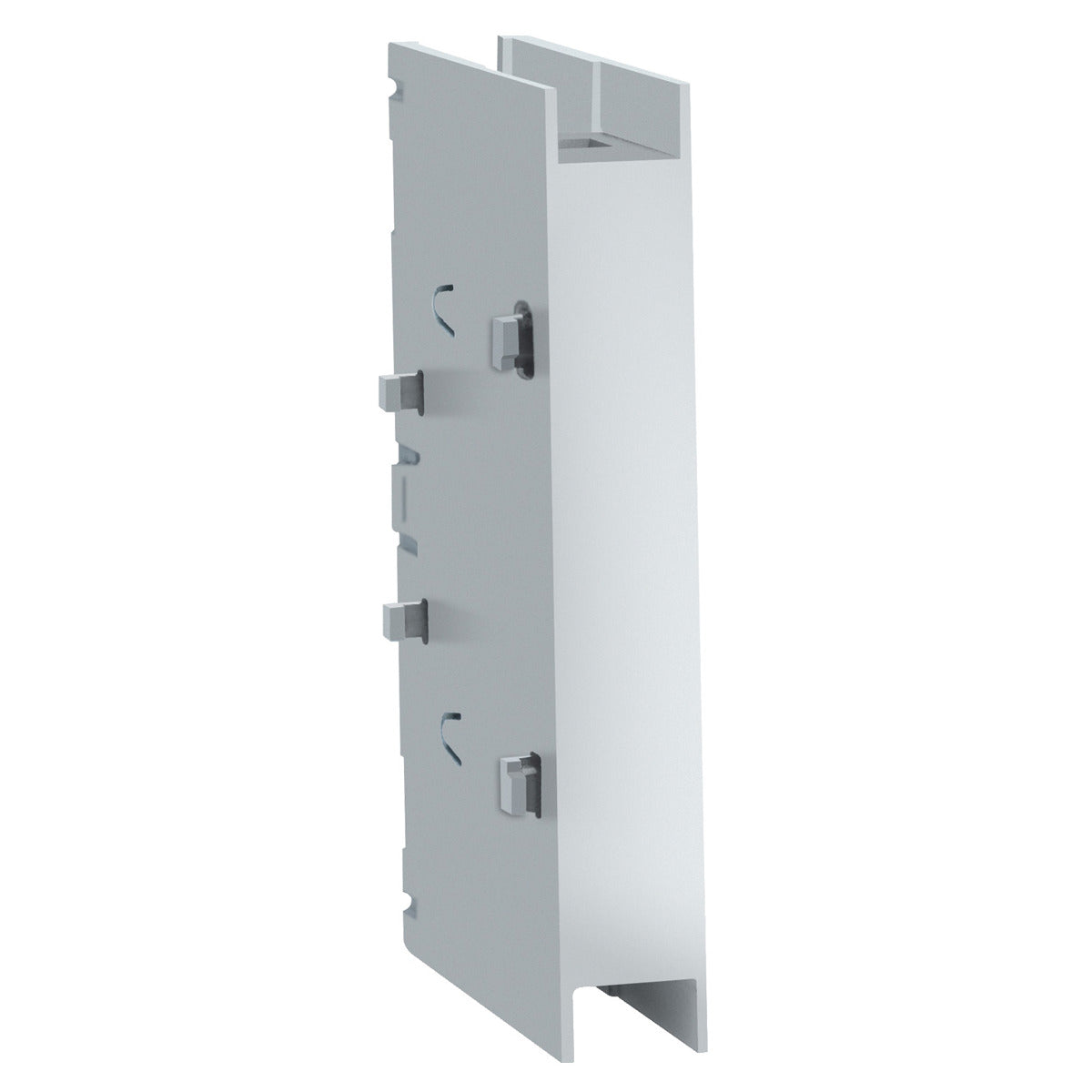

Schneider Electric VLS1GD2 Disconnect Switch, TeSys VLS, Additional Earthing Ground Terminal For 30A To 125A, Size 2 (70mm), Door Mount

Product Description

This Schneider Electric VLS1GD2 disconnect switch is designed for use in control systems for various applications such as material handling, HVAC, pumping, and solar energy. It supports a range of disconnect switches from sixteen amps to one hundred twenty-five amps. The UL508 rated switches include sizes for motor disconnects and UL98 rated non-fusible switches.

• Compatible with VLS3P030D2, VLS3P063D2, VLS3P080D2, VLS3P100D2, and VLS3P125D2.
• Grounding block can be mounted on right or left side.
• Operates at six hundred volts AC and supports current up to one hundred twenty-five amps.

Product Highlights

The grounding block is cULus Listed and meets IEC 60947-3 requirements, ensuring safety and compliance in installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: VLS1GD2
• Country of Origin: Italy
• Application: TeSys TeSys VARIO LS VLS3P; TeSys TeSys VARIO LS VLS1P; TeSys TeSys VARIO LS VLSA
• Connection: Screw clamp terminals for solid and flexible wire types
• Mounting: Door, Left, Right
• Current Rating: 125 A
• Dimensions: Height 3.94 inches, Width 0.91 inches, Depth 1.91 inches
• Weight: 0.24 lbs
